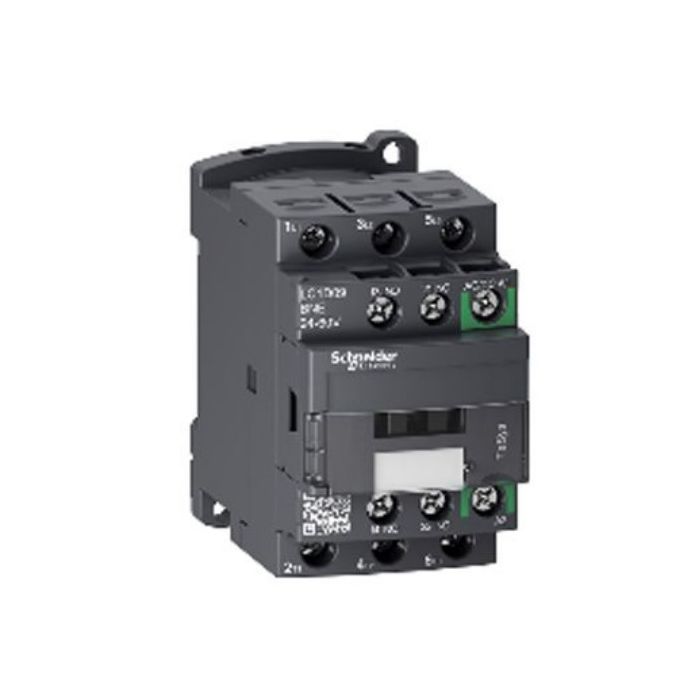

Schneider Contactor General Purpose 3 Pole 7.5kW 12A AC3 25A AC1 24-60VAC/DC 1NO-1NC Auxilary DIN Rail/Plate Mount
Schneider Contactor General Purpose 3 Pole 7.5kW 12A AC3 25A AC1 24-60VAC/DC 1NO-1NC Auxilary DIN Rail/Plate Mount
In stock
SKU
TEELC1D12BNE
Contactor General Purpose, 24-60 Volt AC/DC, AC3 Rating (kW): 7.5, AC3 Rating (Amps): 12 at 440 Volt AC, AC1 Rating (Amps): 25 at 440 Volt AC, 690 Volt AC, 1NO-1NC Auxiliary, 3 Pole, Operating Time: 45-55 ms Closing, 20-90 ms Opening, Screw Clamp, DIN Rail/Plate Mount, IP20, Grey, Green, -40 to 60 deg C, 77 mm Height, 45 mm Width, 86 mm Depth
| Brand | Schneider |
|---|---|
| Range Name | TeSys Model D |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121500 |
| UOM | EA |
| Vendor Product | LC1D12BNE |
| AC1 Rating (Amps) | 25 Amp AC1 |
| AC3 Rating (Amps) | 12 Amp AC3 |
| AC3 Rating (kW) | 7.5 kW |
| Contact Voltage | 690 Volt AC |
| Contact Configuration | 1 Normally Opened & 1 Normally Closed Aux |
| Depth | 86 mm |
| Height | 77 mm |
| IP Rating | IP20 |
| Mounting Method | DIN Rail/Plate |
| Number Of Poles | 3 Pole |
| Operating Coil Voltage | 24-60 Volt AC/DC |
| Operating Time | 45-55 ms Closing/20-90 ms Opening |
| Product Type | Contactors General |
| Temperature | -40 to 60 deg C |
| Terminal Connection | Screw Clamp |
| Width | 45 mm |
Description
Contactor General Purpose, 24-60 Volt AC/DC, AC3 Rating (kW): 7.5, AC3 Rating (Amps): 12 at 440 Volt AC, AC1 Rating (Amps): 25 at 440 Volt AC, 690 Volt AC, 1NO-1NC Auxiliary, 3 Pole, Operating Time: 45-55 ms Closing, 20-90 ms Opening, Screw Clamp, DIN Rail/Plate Mount, IP20, Grey, Green, -40 to 60 deg C, 77 mm Height, 45 mm Width, 86 mm Depth
