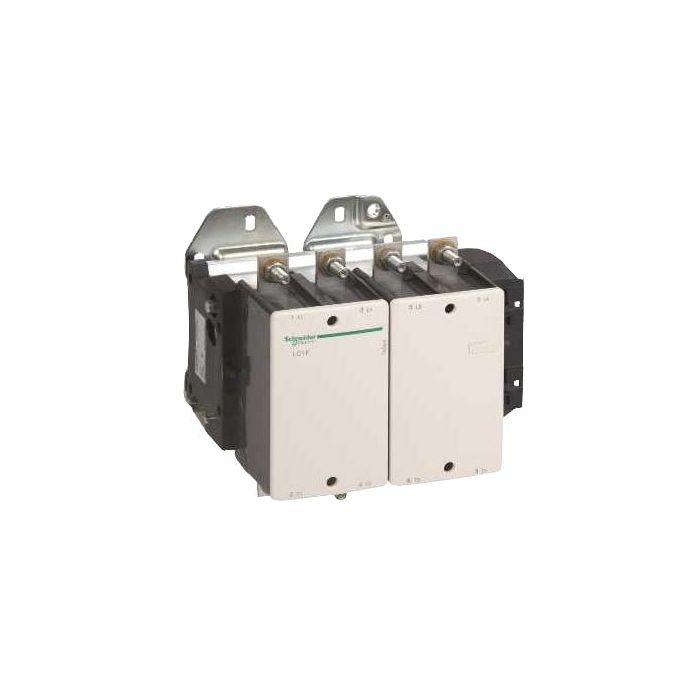

Schneider Contactor General Purpose 4 Pole 280kW 500A AC3 700A AC1 48-440V 1NO Auxiliary Less Coil Base/Plate Mount
Schneider Contactor General Purpose 4 Pole 280kW 500A AC3 700A AC1 48-440V 1NO Auxiliary Less Coil Base/Plate Mount
In stock
SKU
TEELC1-F5004
Contactor General Purpose, 48-1000 Volt AC, 48-440 Volt DC, AC3 Rating (kW): 280, AC3 Rating (Amps): 500, AC1 Rating (Amps): 700, 440 Volt AC, 1NO Auxiliary, 4 Pole, Screw Clamp, Base Mount/Plate, IP20, -5 to 55 deg C, 238 mm Height, 288 mm Width, 232 mm Depth, Less Coil
| Brand | Schneider |
|---|---|
| Range Name | TeSys Model F |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121500 |
| UOM | EA |
| Vendor Product | LC1F5004 |
| AC1 Rating (Amps) | 700 Amp AC1 |
| AC3 Rating (Amps) | 500 Amp AC3 |
| AC3 Rating (kW) | 280 kW |
| Contact Voltage | 440 Volt AC |
| Contact Configuration | 1 Normally Opened Aux |
| Depth | 232 mm |
| Height | 238 mm |
| IP Rating | IP20 |
| Mounting Method | Base Plate |
| Number Of Poles | 4 Pole |
| Operating Coil Voltage | 48-1000 Volt AC/48-440 Volt DC |
| Please Note | Less Coil |
| Product Type | Contactors General |
| Temperature | -5 to 55 deg C |
| Terminal Connection | Screw Clamp |
| Width | 288 mm |
Description
Contactor General Purpose, 48-1000 Volt AC, 48-440 Volt DC, AC3 Rating (kW): 280, AC3 Rating (Amps): 500, AC1 Rating (Amps): 700, 440 Volt AC, 1NO Auxiliary, 4 Pole, Screw Clamp, Base Mount/Plate, IP20, -5 to 55 deg C, 238 mm Height, 288 mm Width, 232 mm Depth, Less Coil
