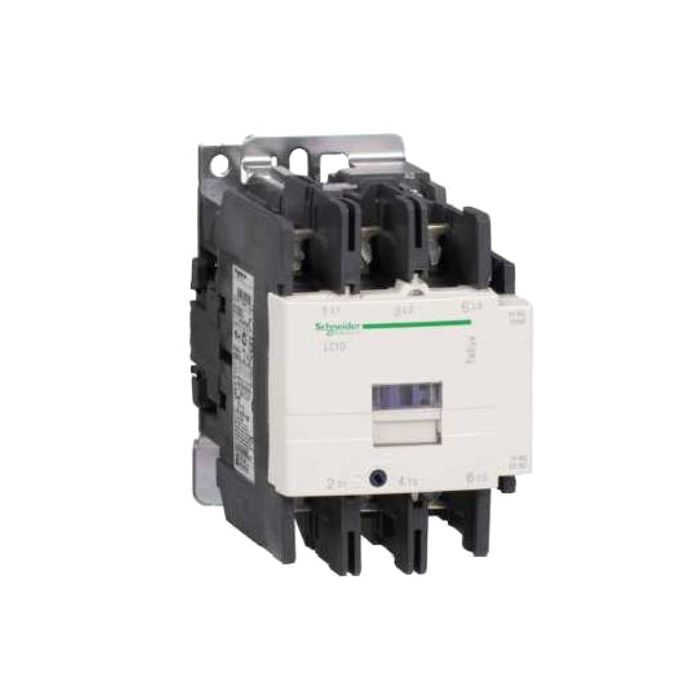

Schneider Contactor General Purpose AC Operated 3 Pole 45kW 95A AC3 125A AC1 24V 1NO-1NC Auxilary DIN Rail/Plate Mount
Schneider Contactor General Purpose AC Operated 3 Pole 45kW 95A AC3 125A AC1 24V 1NO-1NC Auxilary DIN Rail/Plate Mount
In stock
SKU
TEELC1-D95B7
Contactor General Purpose AC Operated, 24 Volt AC, AC3 Rating (kW): 45, AC3 Rating (Amps): 95 at 440 Volt AC, AC1 Rating (Amps): 125 at 690 Volt AC, 1000 Volt AC, 1NO-1NC Auxiliary, 3 Pole, Operating Time: 20-35 ms Closing, 6-20 ms Opening, Screw Clamp, DIN Rail/Plate Mount, IP20, -40 to 60 deg C, 127 mm Height, 85 mm Width, 130 mm Depth
| Brand | Schneider |
|---|---|
| Range Name | TeSys Model D |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121500 |
| UOM | EA |
| Vendor Product | LC1D95B7 |
| AC1 Rating (Amps) | 125 Amp AC1 |
| AC3 Rating (Amps) | 95 Amp AC3 |
| AC3 Rating (kW) | 45 kW |
| Contact Voltage | 1000 Volt AC |
| Contact Configuration | 1 Normally Opened & 1 Normally Closed Aux |
| Depth | 130 mm |
| Height | 127 mm |
| IP Rating | IP20 |
| Mounting Method | DIN Rail/Plate |
| Number Of Poles | 3 Pole |
| Operating Coil Voltage | 24 Volt AC |
| Operating Time | 20-35 ms Closing/6-20 ms Opening |
| Product Type | Contactors General |
| Temperature | -40 to 60 deg C |
| Terminal Connection | Screw Clamp |
| Width | 85 mm |
Description
Contactor General Purpose AC Operated, 24 Volt AC, AC3 Rating (kW): 45, AC3 Rating (Amps): 95 at 440 Volt AC, AC1 Rating (Amps): 125 at 690 Volt AC, 1000 Volt AC, 1NO-1NC Auxiliary, 3 Pole, Operating Time: 20-35 ms Closing, 6-20 ms Opening, Screw Clamp, DIN Rail/Plate Mount, IP20, -40 to 60 deg C, 127 mm Height, 85 mm Width, 130 mm Depth
