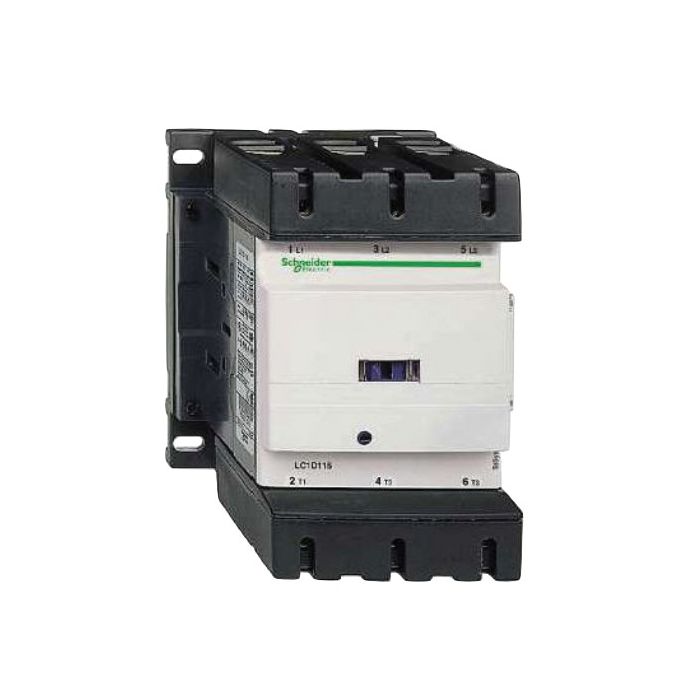

Schneider Contactor General Purpose 3 Pole 75kW 150A AC3 200A AC1 415V 1NO-1NC Auxilary DIN Rail/Plate Mount
Schneider Contactor General Purpose 3 Pole 75kW 150A AC3 200A AC1 415V 1NO-1NC Auxilary DIN Rail/Plate Mount
In stock
SKU
TEELC1-D1506N7
Contactor General Purpose, 415 Volt AC, AC3 Rating (kW): 75, AC3 Rating (Amps): 150 at 440 Volt AC, AC1 Rating (Amps): 200 at 440 Volt AC, 1000 Volt AC, 300 Volt DC, 1NO-1NC Auxiliary, 3 Pole, Operating Time: 20-35 ms Closing, 40-75 ms Opening, Lug Ring, DIN Rail/Plate Mount, IP20, -40 to 60 deg C, 158 mm Height, 120 mm Width, 136 mm Depth
| Brand | Schneider |
|---|---|
| Range Name | TeSys Model D |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121500 |
| UOM | EA |
| Vendor Product | LC1D1506N7 |
| AC1 Rating (Amps) | 200 Amp AC1 |
| AC3 Rating (Amps) | 150 Amp AC3 |
| AC3 Rating (kW) | 7.5 kW |
| Contact Voltage | 1000 Volt AC/300 Volt DC |
| Contact Configuration | 1 Normally Opened & 1 Normally Closed Aux |
| Depth | 136 mm |
| Height | 158 mm |
| IP Rating | IP20 |
| Mounting Method | DIN Rail/Plate |
| Number Of Poles | 3 Pole |
| Operating Coil Voltage | 415 Volt AC |
| Operating Time | 20-35 ms Closing/40-75 ms Opening |
| Product Type | Contactors General |
| Temperature | -40 to 60 deg C |
| Terminal Connection | Lug Ring |
| Width | 120 mm |
Description
Contactor General Purpose, 415 Volt AC, AC3 Rating (kW): 75, AC3 Rating (Amps): 150 at 440 Volt AC, AC1 Rating (Amps): 200 at 440 Volt AC, 1000 Volt AC, 300 Volt DC, 1NO-1NC Auxiliary, 3 Pole, Operating Time: 20-35 ms Closing, 40-75 ms Opening, Lug Ring, DIN Rail/Plate Mount, IP20, -40 to 60 deg C, 158 mm Height, 120 mm Width, 136 mm Depth
