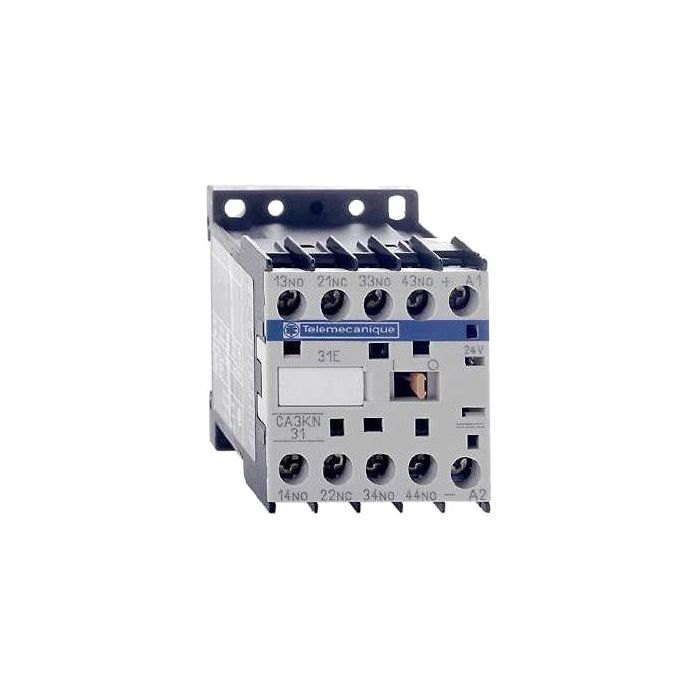

Schneider Contactor Control Relay Switching 4 Pole 6/3A 110VDC 4NO DIN Rail/Plate Mount
Schneider Contactor Control Relay Switching 4 Pole 6/3A 110VDC 4NO DIN Rail/Plate Mount
In stock
SKU
TEECA3KN40FD
Contactor Control Relay Switching, AC15 Rating: AC15 Rating: 240 Volt at 6 Amp, 415 Volt at 3 Amp, 110 Volt DC, 4 NO, 4 Pole, Operating Time: 10 ms NO, 30-40 ms NC, Screw Clamp, DIN Rail/Base/Plate Mount, IP2x, -25 to 50 deg C, 58 mm Height, 45 mm Width, 57 mm Depth
| Brand | Schneider |
|---|---|
| Range Name | TeSys Model K |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121500 |
| UOM | EA |
| Vendor Product | CA3KN40FD |
| Contact Configuration | 4 Normally Opened |
| AC15 Rating | 6 Amp 240 Volt/3 Amp 415 Volt |
| Depth | 57 mm |
| Height | 58 mm |
| IP Rating | IP2x |
| Number Of Poles | 4 Pole |
| Mounting Method | DIN Rail/Base/Plate |
| Operating Coil Voltage | 110 Volt DC |
| Temperature | -25 to 50 deg C |
| Operating Time | 10 ms NO/30-40 ms NC |
| Product Type | Contactors Switching |
| Width | 45 mm |
| Terminal Connection | Screw Clamp |
Description
Contactor Control Relay Switching, AC15 Rating: AC15 Rating: 240 Volt at 6 Amp, 415 Volt at 3 Amp, 110 Volt DC, 4 NO, 4 Pole, Operating Time: 10 ms NO, 30-40 ms NC, Screw Clamp, DIN Rail/Base/Plate Mount, IP2x, -25 to 50 deg C, 58 mm Height, 45 mm Width, 57 mm Depth
