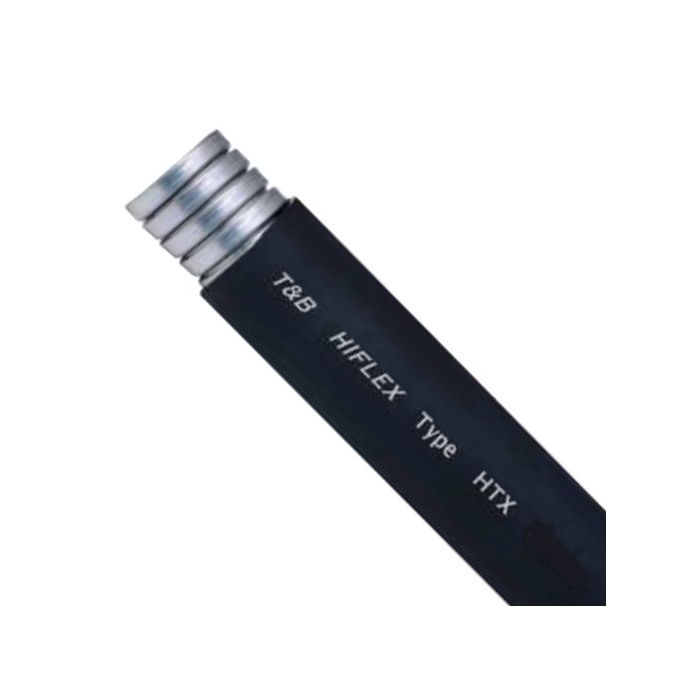

Thomas & Betts Hi-Flex Flexible Conduit Metal Liquid Tight Oil & Heat Resistant 16mm 50M Galvanised Steel/TPR Black

Thomas & Betts Hi-Flex Flexible Conduit Metal Liquid Tight Oil & Heat Resistant 16mm 50M Galvanised Steel/TPR Black

In stock
SKU
T&BHTX016-B-50
Add to Compare
main product photo
Flexible Conduit, Metal, Liquid Tight, Oil & Heat Resistant, 16 mm, 12.5 mm ID, 17.8 mm OD, 50 mtr, 50 mm Bend Radius, IP66, Steel, Galvanised Finish, Thermoplastic Rubber Sheath, Black Sheath, -60 to 150 deg C
More Information
More Information
Features
  • These conduits are typically used in installations where there are motion, vibration and bending requirements such as in manufacturing or processing plants or where a high level of mechanical protection is required for an indoor or outdoor cable installation
  • Three grades of liquidtight jacketed metallic conduit are available to suit different types of environments
  • Extra high temperature resistance
  • Made to the same exactly standards as Type HLT but for extra high temperatures
  • Flexible with excellent mechanical strength
  • Excellent UV resistance
  • Spiral wound, interlocked galvanised steel core for superior strength
  • High performance thermoplastic vulcanizate (TPV) jacket creates a liquidtight conduit almost unaffeacted by temperature extremes and with exceptional resistant to most oils and chemicals
  • Flammability rating of UL 94-HB
  • Grounded due to the continuous metal core
Brand Thomas & Betts
Range Name Hi-Flex HTX
Standard Pack Size 50
UNSPSC Class 39131700
UOM RO
Vendor Product HTX016-B-50
Inside Diameter 12.5mm
Bend Radius 50mm
Conduit Size 16 mm
IP Rating IP66
Length 50mtr
Outside Diameter 17.8mm
Product Type Flex Conduit Oil/Heat Resistant
Sheath Colour Black
Temperature -60 to 150 deg C

Description

Flexible Conduit, Metal, Liquid Tight, Oil & Heat Resistant, 16 mm, 12.5 mm ID, 17.8 mm OD, 50 mtr, 50 mm Bend Radius, IP66, Steel, Galvanised Finish, Thermoplastic Rubber Sheath, Black Sheath, -60 to 150 deg C
