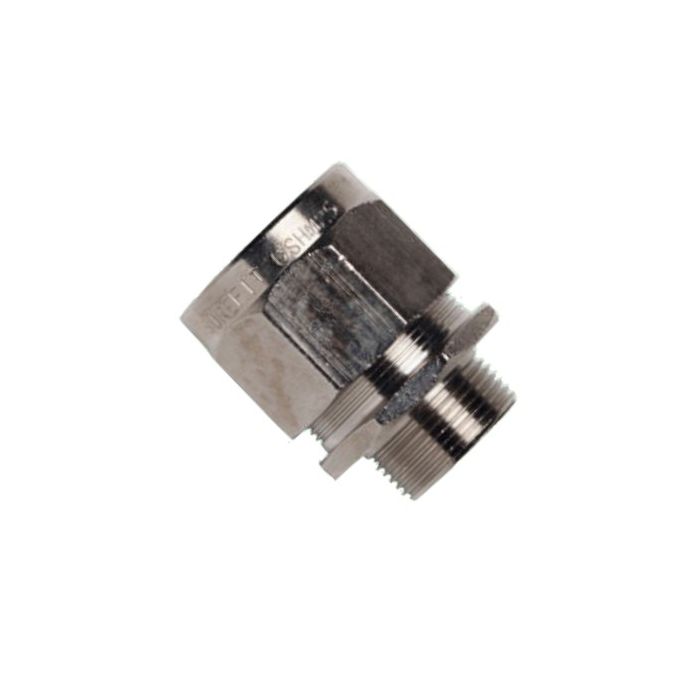

Surefit Cable Gland EMC VSD Screened Cable M50 x 1.5 43-54.7mm IP66/68
Surefit Cable Gland EMC VSD Screened Cable M50 x 1.5 43-54.7mm IP66/68
In stock
SKU
SURGSHM50
Cable Gland, EMC VSD Screened Cable, M50 x 1.5, 13.9 mm Thread Length, 1.5 mm Pitch, 43 mm Min. Sheath OD, 54.7 mm Max. Sheath OD, 73.9 mm Width Across Flats, 68.2 mm Width Across Corners, 54 mm Protrusion Length, 43.8 mm Max. Bedding OD, IP66/68, Brass Body, Nickel Plated Finish
| Features |
|
|---|---|
| Brand | Surefit |
| Range Name | Type GSHM |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | GSHM50 |
| Body Material | Brass |
| Finish | Nickel Plated |
| IP Rating | IP66/68 |
| Max. Sheath OD | 54.7 mm |
| Min. Sheath OD | 43 mm |
| Product Type | Cable Glands EMC |
| Thread Length | 13.9 mm |
| Thread Pitch | 1.5 mm |
| Thread Size | M50 x 1.5 |
| Width Across Corners | 68.2 mm |
| Width Across Flats | 73.9 mm |
Description
Cable Gland, EMC VSD Screened Cable, M50 x 1.5, 13.9 mm Thread Length, 1.5 mm Pitch, 43 mm Min. Sheath OD, 54.7 mm Max. Sheath OD, 73.9 mm Width Across Flats, 68.2 mm Width Across Corners, 54 mm Protrusion Length, 43.8 mm Max. Bedding OD, IP66/68, Brass Body, Nickel Plated Finish
