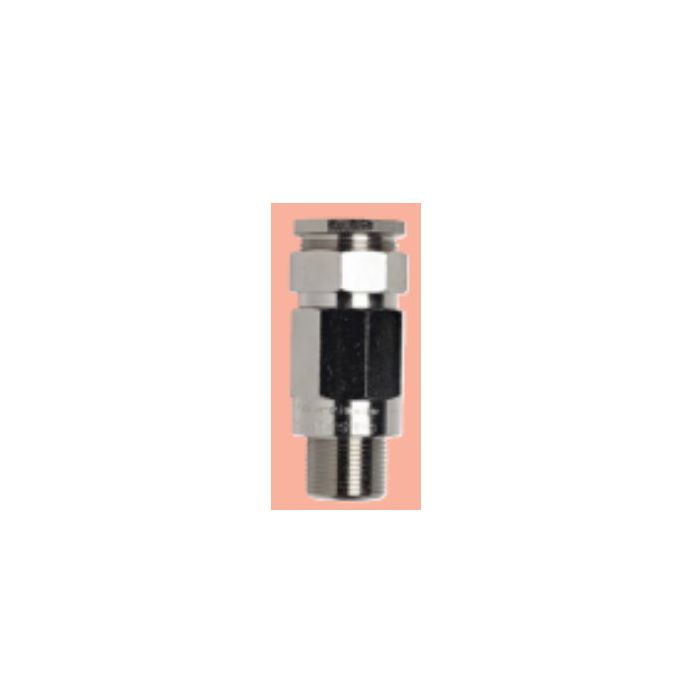

Surefit Hazardous Area Cable Gland Armoured 41.5-46.7mm M50 x 1.5 IP66/68
Surefit Hazardous Area Cable Gland Armoured 41.5-46.7mm M50 x 1.5 IP66/68
In stock
SKU
SURFWPM5
Hazardous Area Cable Gland, Armoured, M50 x 1.5, 25.4 mm Thread Length, 1.5 mm Pitch, 41.5 mm Min. Sheath OD, 46.7 mm Max. Sheath OD, 36.5 mm Max. Bedding OD, 2 mm Min. Armour Wire, 2.5 mm Max. Armour Wire, Exdb I/IIC, Exeb I/IIC, Ex ta IIIC, 73 mm Width Across Flats, 79.1 mm Width Across Corners, 97 mm Protrusion Length, IP66/68, Neoprene Seal, Brass Body, Nickel Plated Finish, 1/Pack
| Features |
|
|---|---|
| Brand | Surefit |
| Range Name | Type FWPM |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | FWPM5 |
| Body Material | Brass |
| Finish | Nickel Plated |
| Hazardous Area Rating | Exdb I/IIC Exeb I/IIC Ex ta IIIC |
| IP Rating | IP66/68 |
| Max. Armour Wire | 2.5 mm |
| Max. Bedding OD | 36.5 mm |
| Max. Sheath OD | 46.7 mm |
| Min. Armour Wire | 2 mm |
| Min. Sheath OD | 41.5 mm |
| Product Type | Cable Glands Hazardous Area |
| Protrusion Length | 97 mm |
| Seal Material | Neoprene |
| Thread Length | 25.4 mm |
| Thread Pitch | 1.5 mm |
| Thread Size | M50 x 1.5 |
| Width Across Corners | 79.1 mm |
| Width Across Flats | 73 mm |
Description
Hazardous Area Cable Gland, Armoured, M50 x 1.5, 25.4 mm Thread Length, 1.5 mm Pitch, 41.5 mm Min. Sheath OD, 46.7 mm Max. Sheath OD, 36.5 mm Max. Bedding OD, 2 mm Min. Armour Wire, 2.5 mm Max. Armour Wire, Exdb I/IIC, Exeb I/IIC, Ex ta IIIC, 73 mm Width Across Flats, 79.1 mm Width Across Corners, 97 mm Protrusion Length, IP66/68, Neoprene Seal, Brass Body, Nickel Plated Finish, 1/Pack
