Socomec Load-Break Switch Front Operated 3P 800A AC21 450 kW AC23 Base Mount IP65

Socomec Load-Break Switch Front Operated 3P 800A AC21 450 kW AC23 Base Mount IP65

In stock
SKU
SOCSLB8003P
Add to Compare

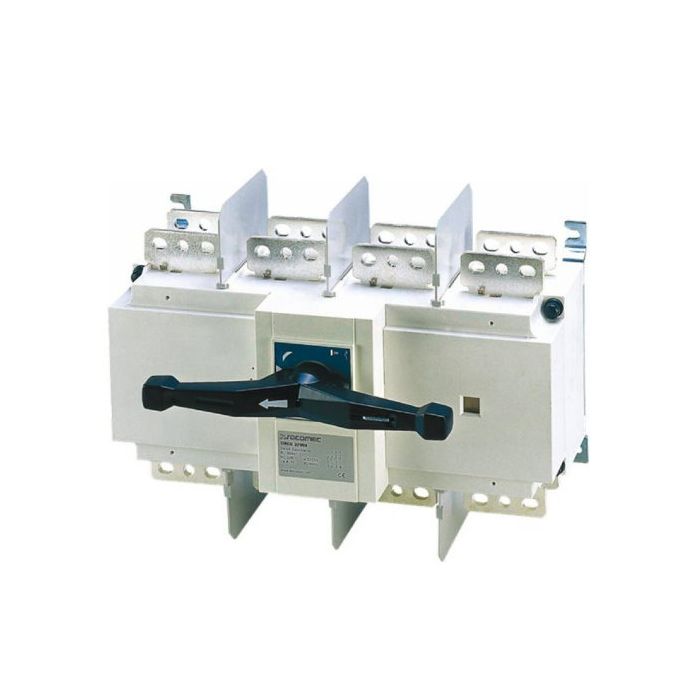

main product photo
Load-Break Switch Front Operated, 400-690 Volt AC, 220/500 Volt DC, 800 Amp, AC21 Rating: 800 Amp, AC23 Rating: 800 Amp @ 400/415 Volt, 450 kW @ 400/415/500 Volt, 3 Pole, Cable Size: 185-300 mm, Tightening Torque: 37 Nm, IP65, Base Mount/Panel, 321 mm Height, 280 mm Width, 215 mm Depth
More Information
More Information
Features
  • Double break per pole offers high durability and short-circuit withstand
  • Use of glass fibre reinforced polyester provides high mechanical and thermal resistance (does not include SLBM or VLBM modular series)
  • Quick and easy to install thanks to good centre to centre distance and connection accessories including copper connecting links
  • Wide range of accessories available which is flexible in adapting to various applications and reduces the cost of management and storage
  • All Socomec load break switches are compatible with the ergonomic IP65 S-Type Handles which features interlocking (in the ON position), padlocking, UV and chemical agent resistive material and the choice of standard blue or red / yellow colour
Brand Socomec
Range Name SIRCO SLB
Standard Pack Size 1
UNSPSC Class 39122200
UOM EA
Vendor Product SLB8003P
AC23 Rating 800 Amp 450 kW @ 400-415 Volt
Cable Size 185-300 sq-mm
Current 800 Amp
Depth 215 mm
IP Rating IP65
Height 321 mm
Number Of Poles 3 Pole
Product Type Load-Break Switches
Tightening Torque 37 Nm
Voltage 400-690 Volt AC/220-500 Volt DC
Width 280 mm

Description

Load-Break Switch Front Operated, 400-690 Volt AC, 220/500 Volt DC, 800 Amp, AC21 Rating: 800 Amp, AC23 Rating: 800 Amp @ 400/415 Volt, 450 kW @ 400/415/500 Volt, 3 Pole, Cable Size: 185-300 mm, Tightening Torque: 37 Nm, IP65, Base Mount/Panel, 321 mm Height, 280 mm Width, 215 mm Depth
