Socomec Changeover Switch Front Operated 4P 500A AC21 235 kW AC23 Base Mount IP65

Socomec Changeover Switch Front Operated 4P 500A AC21 235 kW AC23 Base Mount IP65

In stock
SKU
SOCSCO5004PMB
Add to Compare

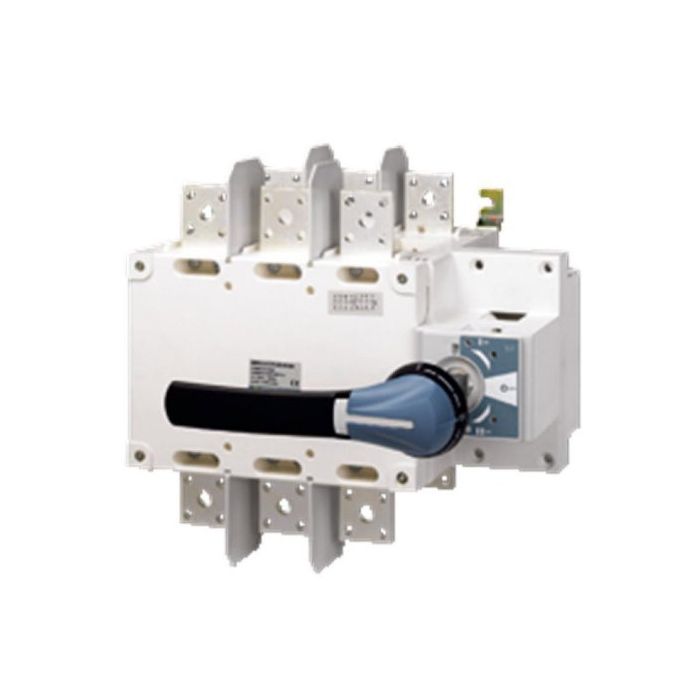

main product photo
Changeover Switch Front Operated, 415/690 Volt AC, AC21 Rating: 500 Amp @ 415 Volt, 400 Amp @ 690 Volt, AC23 Rating: 160 Amp @ 690 Volt, 500 Amp @ 415 Volt, 235 kW @ 415 Volt, 4 Pole, 3 Phase, Switching Positions: 3, 240 mm, Base Mount, IP65
More Information
More Information
Features
  • Standard (I-0-II) and make before break (I-I and II-II) options available covering any application requirement
  • Three stable positions (I-O-II) not affected by voltage drops or vibrations ensuring the connected load is protected against possible network interference
  • Easy connections thanks to copper bar connection kit accessory for 2000 to 3200 A switches enabling the use of flat or edgewise connection with top or bottom bridging
  • Compatibility with the ergonomic IP65 S-Type Handles which features interlocking (in the ON position), padlocking, UV and chemical agent resistive material and the choice of standard blue or red/yellow colour
Brand Socomec
Range Name SIRCOVER SCO
Standard Pack Size 1
UNSPSC Class 39122200
UOM EA
Vendor Product SCO5004PMB
AC21 Rating 500 Amp AC21 @ 415 Volt/400 Amp AC21 @ 690 Volt
Conductor Size 240 sq-mm
AC23 Rating 160 Amp @ 690 Volt/500 Amp 235 kW @ 415 Volt
Number Of Poles 4 Pole
Phase 3 Phase
Mounting Method Base Plate
IP Rating IP65
Switching Positions 3
Product Type Changeover Switches
Voltage 415-690 Volt AC

Description

Changeover Switch Front Operated, 415/690 Volt AC, AC21 Rating: 500 Amp @ 415 Volt, 400 Amp @ 690 Volt, AC23 Rating: 160 Amp @ 690 Volt, 500 Amp @ 415 Volt, 235 kW @ 415 Volt, 4 Pole, 3 Phase, Switching Positions: 3, 240 mm, Base Mount, IP65
