Socomec Changeover Switch UPS Bypass Front Operated 3P 160A AC21 80 kW AC23 Base Mount IP65

Socomec Changeover Switch UPS Bypass Front Operated 3P 160A AC21 80 kW AC23 Base Mount IP65

In stock
SKU
SOCBCO1603PMB
Add to Compare

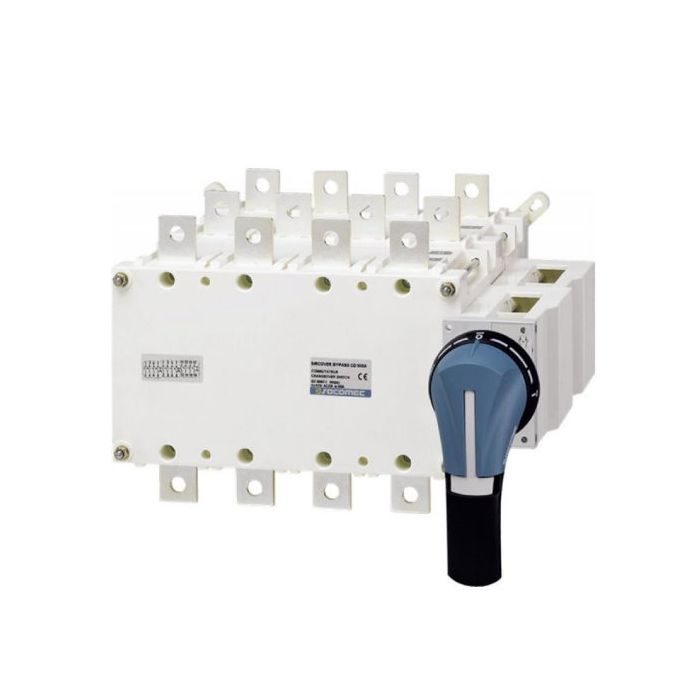

main product photo
Changeover Switch UPS Bypass Front Operated, 400/690 Volt AC, 220/440 Volt DC, AC21 Rating: 160 Amp, AC23 Rating: 63 Amp @ 690 Volt, 160 Amp @ 400 Volt, 80 kW @ 400/415 Volt, 3 Pole, 3 Phase, Switching Positions: 3, 50 mm, Base Mount, IP65, 135 mm Height, 221 mm Width, 313 mm Depth
More Information
More Information
Features
  • Standard (I-0-II) and make before break (I-I and II-II) options available covering any application requirement
  • Three stable positions (I-O-II) not affected by voltage drops or vibrations ensuring the connected load is protected against possible network interference
  • Easy connections thanks to copper bar connection kit accessory for 2000 to 3200 A switches enabling the use of flat or edgewise connection with top or bottom bridging
  • Compatibility with the ergonomic IP65 S-Type Handles which features interlocking (in the ON position), padlocking, UV and chemical agent resistive material and the choice of standard blue or red/yellow colour
Brand Socomec
Range Name SIRCOVER BYPASS
Standard Pack Size 1
UNSPSC Class 39122200
UOM EA
Vendor Product BCO1603PMB
AC23 Rating 63 Amp @ 690 Volt/160 Amp 80 kW @ 400 Volt
Conductor Size 50 sq-mm
Depth 313 mm
Current 160 Amp
Mounting Method Base Plate
Height 135 mm
IP Rating IP65
Number Of Poles 3 Pole
Phase 3 Phase
Product Type Changeover Switches
Switching Positions 3
Width 221 mm
Voltage 400-690 Volt AC/220-440 Volt DC

Description

Changeover Switch UPS Bypass Front Operated, 400/690 Volt AC, 220/440 Volt DC, AC21 Rating: 160 Amp, AC23 Rating: 63 Amp @ 690 Volt, 160 Amp @ 400 Volt, 80 kW @ 400/415 Volt, 3 Pole, 3 Phase, Switching Positions: 3, 50 mm, Base Mount, IP65, 135 mm Height, 221 mm Width, 313 mm Depth
