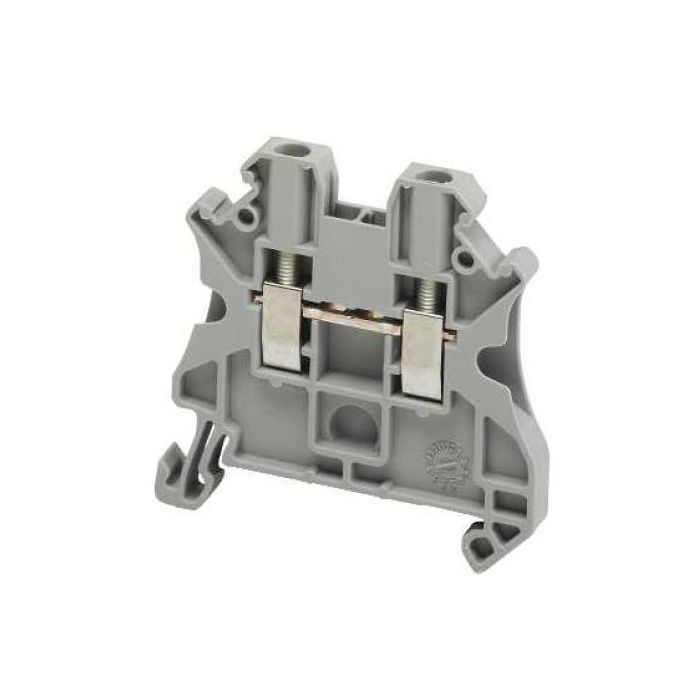

Schneider Rail Terminal Block Feed-Through Screwed 2 Wire 1 Level 2.5mm Grey Polyamide 66
Schneider Rail Terminal Block Feed-Through Screwed 2 Wire 1 Level 2.5mm Grey Polyamide 66
In stock
SKU
SHNNSYTRV22
Linergy TR is terminal block for Linergy. It belongs to linergy pass through terminal block with 2.5 sq-mm nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus, 1000V conforming to EN/IEC 60947-7-1 and 690V conforming to ATEX Exe II Ex II 2 GD. The rated current is 24A conforming to EN/IEC 60947-7-1, 20A conforming to CSA/cURus and 22A conforming to ATEX Exe II Ex II 2 GD. It has grey surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with special enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Special, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 deg C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).
| Brand | Schneider |
|---|---|
| Range Name | Linergy |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | NSYTRV22 |
| Conductor Material | Copper Alloy |
| Current Rating | 24 Amp |
| Colour | Grey |
| Conductor Size | 2.5mm |
| Depth | 5.2 mm |
| Flammability | UL94 V0 |
| Height | 47.7 mm |
| Insulation Material | Polyamide 66 |
| Number of Conductors | 2 |
| Mounting Method | Clip On |
| Number of Connection Points | 2 |
| Number of Levels | 1 |
| Temperature | -40 to 130 deg C |
| Tightening Torque | 0.5-0.6 Nm |
| Terminal Type | Screw |
| Voltage Rating | 600 Volt |
| Width | 47.5 mm |
| Wire Entry Orientation | Side |
| Wiring Format | 2 Conductor Through |
| Wire Strip Length | 9 mm |
Description
Linergy TR is terminal block for Linergy. It belongs to linergy pass through terminal block with 2.5 sq-mm nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus, 1000V conforming to EN/IEC 60947-7-1 and 690V conforming to ATEX Exe II Ex II 2 GD. The rated current is 24A conforming to EN/IEC 60947-7-1, 20A conforming to CSA/cURus and 22A conforming to ATEX Exe II Ex II 2 GD. It has grey surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with special enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Special, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 deg C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).
