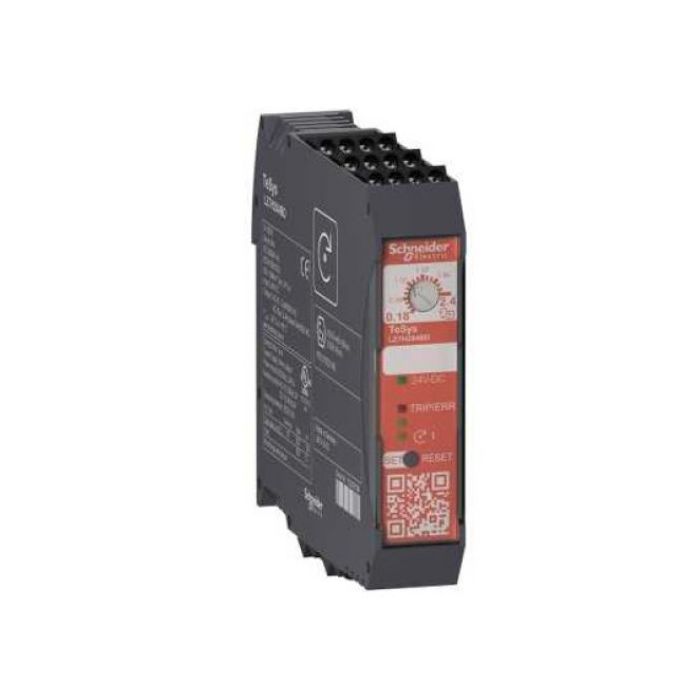

Schneider Motor Starter Direct On Line 3kW 1.5-9A 24VDC IP20
Schneider Motor Starter Direct On Line 3kW 1.5-9A 24VDC IP20
In stock
SKU
SHNLZ7H6X5BD
Motor Starter Direct On Line, 500 Volt AC, 50/60 Hz, 3 kW, 24 Volt DC, 3 Pole, Setting Range: 1.5-9 Amp, Screw Clamp, Operating Cycles: 30 M Cycles Electrical, IP20, Mounting Method: Din Rail, -25 to 30 deg C Without Derating, 30 to 70 deg C With Derating, 99 mm Height, 22.5 mm Width, 114.5 mm Depth, Torque-Off
| Brand | Schneider |
|---|---|
| Range Name | TeSys |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121500 |
| UOM | EA |
| Vendor Product | LZ7H6X5BD |
| Coil Voltage | 24 Volt DC |
| Connection Type | Screw Clamp |
| Depth | 114.5 mm |
| Frequency | 50/60 Hz |
| Height | 99 mm |
| IP Rating | IP20 |
| Motor Power | 3 kW |
| Operating Cycles | 30 M Cycles Electrical |
| Operating Temperature | -25 to 30 deg C Without Derating/30 to 70 deg C With Derating |
| Please Note | Torque-Off |
| Product Type | Motor Starters DOL |
| Setting Range | 1.5-9 Amp |
| Voltage | 500 Volt AC |
| Width | 22.5 mm |
Description
Motor Starter Direct On Line, 500 Volt AC, 50/60 Hz, 3 kW, 24 Volt DC, 3 Pole, Setting Range: 1.5-9 Amp, Screw Clamp, Operating Cycles: 30 M Cycles Electrical, IP20, Mounting Method: Din Rail, -25 to 30 deg C Without Derating, 30 to 70 deg C With Derating, 99 mm Height, 22.5 mm Width, 114.5 mm Depth, Torque-Off
