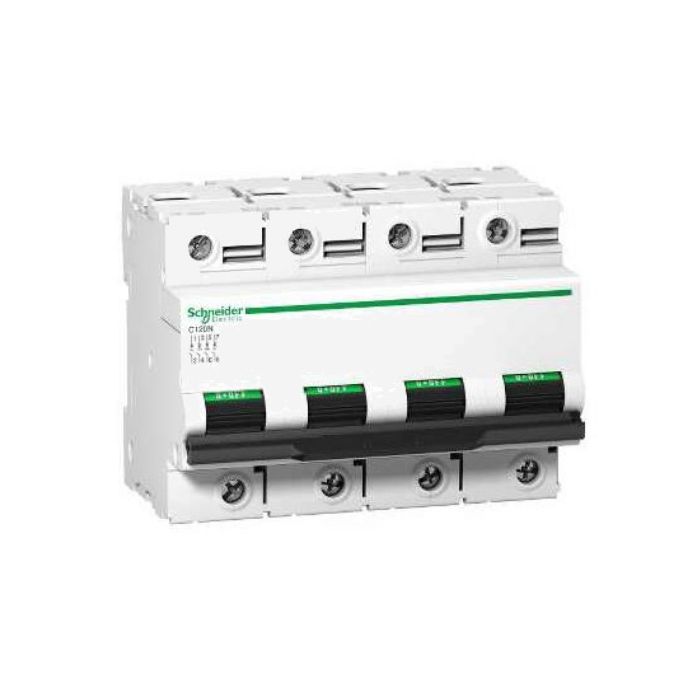

Schneider Miniature Circuit Breaker C Curve 80Amp 10 kA 4Pole 6Module 108mm DIN Rail/Clip-On Mount
Schneider Miniature Circuit Breaker C Curve 80Amp 10 kA 4Pole 6Module 108mm DIN Rail/Clip-On Mount
In stock
SKU
SHNA9N18372
Miniature Circuit Breaker C Curve C Curve, 380-415, 220-240, 440, 230-400 Volt AC, <= 500 Volt DC, 80 Amp, 50/60 Hz, Interrupt Capacity: 10 kA, Number of Modules: 6, 108mm Module Width, Number of Poles: 4, Trip Characteristic: C Curve, Toggle Actuator, 3.5 N/m Tightening Torque, 1 to 50 mm Rigid, 1.5 to 35 mm Flexible Terminal Capacity, IP20 Conforming to IEC 60529, 20000 Cycles, DIN Rail, Clip-On, White,-25 to 70 deg C, 81mm Height x 108mm Width x 73mm Depth
| Features |
|
|---|---|
| Brand | Schneider |
| Range Name | Acti 9 iC120N |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | A9N18372 |
| Actuator Type | Toggle |
| Colour | White |
| Current | 80 Amp |
| Depth | 73 mm |
| Electrical Life | 20000 Cycles |
| Frequency | 50/60 Hz |
| Height | 81 mm |
| Interrupt Capacity | 10 kA |
| IP Rating | IP20 |
| Modules | 6 Module 108 mm |
| Mounting Method | DIN Rail/Clip-On |
| Number Of Poles | 4 Pole |
| Product Type | Mini Circuit Breakers |
| Temperature | -25 to 70 deg C |
| Tightening Torque | 3.5 Nm |
| Voltage | 380-415-220-240-440-230-400 Volt AC / <= 500 Volt DC |
| Width | 108 mm |
Description
Miniature Circuit Breaker C Curve C Curve, 380-415, 220-240, 440, 230-400 Volt AC, <= 500 Volt DC, 80 Amp, 50/60 Hz, Interrupt Capacity: 10 kA, Number of Modules: 6, 108mm Module Width, Number of Poles: 4, Trip Characteristic: C Curve, Toggle Actuator, 3.5 N/m Tightening Torque, 1 to 50 mm Rigid, 1.5 to 35 mm Flexible Terminal Capacity, IP20 Conforming to IEC 60529, 20000 Cycles, DIN Rail, Clip-On, White,-25 to 70 deg C, 81mm Height x 108mm Width x 73mm Depth
