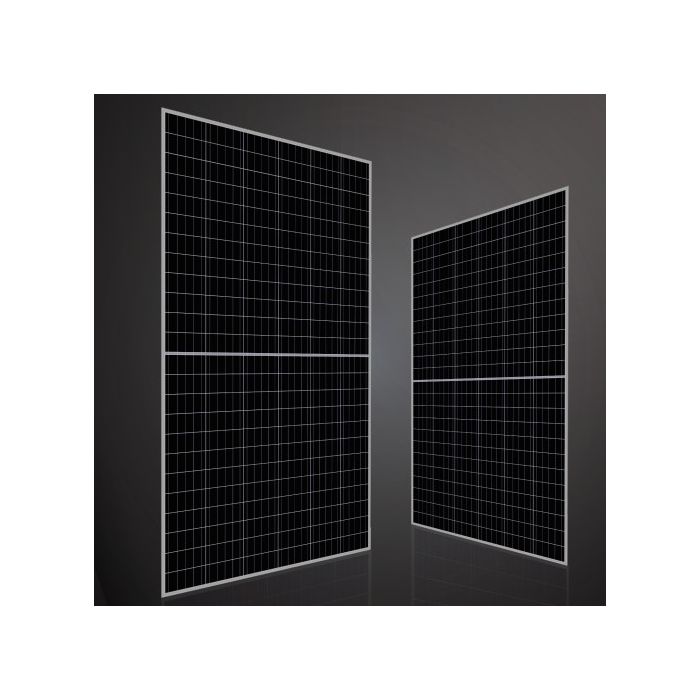

Seraphim Blade Solar Panel 400 Watt Mono-Crystalline PERC 144 Cells
Seraphim Blade Solar Panel 400 Watt Mono-Crystalline PERC 144 Cells
In stock
SKU
SERSRP-400-BMA
Solar Panel, Monocrystalline PERC, 144 Cells, 400 Watt, 41.6 Volt, 9.62 Amp, 49.1 Volt Open Circuit, 10.1 Amp Short Circuit Current, 20 Amp Max. Fuse Current, 1000 Volt DC Max. System Voltage, 19.81% Efficiency, 0, +4.99 Watt Power Tolerance, MC4 Compatible Connector, 4 mm, Portrait: 255 mm(+)/355 mm(-); Landscape:1200 mm Output Cables, IP68, 3 Diodes Junction Box, Anodized Aluminium Alloy Frame Construction, 3.2 mm AR Coating Tempered Glass, Low Iron Front Glass, 0.38%/deg C Temperature Coefficient, -40 to 85 deg C Operating Temperature, 2015 mm x 1002 mm x 40 mm, 23 kg
| Brand | Seraphim |
|---|---|
| Range Name | Blade |
| Standard Pack Size | 1 |
| UNSPSC Class | 26111600 |
| UOM | EA |
| Vendor Product | SRP-400-BMA |
| Cell Type | Monocrystalline |
| Connector Type | MC4 Compatible |
| Efficiency | 19.81% |
| Frame Construction | Anodized Aluminium |
| Front Glass | 3.2 mm AR Coating Tempered Glass/Low Iron |
| Height | 40 mm |
| Item Weight | 23 kg |
| Length | 2015 mm |
| Junction Box | IP68/3 Diodes |
| Max. Current | 9.62 Amp |
| Max. Fuse Current | 20 Amp |
| Max. Voltage | 41.6 Volt |
| Max. System Voltage | 1000 Volt DC |
| Number Of Cells | 144 |
| Open Circuit Voltage | 49.1 Volt |
| Operating Temperature | -40 to 85 deg C |
| Output Cables | 4 sq-mm/Portrait: 255 mm(+)/355 mm(-): Landscape:1200 mm |
| Power Tolerance | 0 +4.99 Watt |
| Product Type | Solar Panels |
| Short Circuit Current | 10.1 Amp |
| Temperature Coefficient | 0.38%/deg C |
| Wattage | 400 Watt |
| Width | 1002 mm |
Description
Solar Panel, Monocrystalline PERC, 144 Cells, 400 Watt, 41.6 Volt, 9.62 Amp, 49.1 Volt Open Circuit, 10.1 Amp Short Circuit Current, 20 Amp Max. Fuse Current, 1000 Volt DC Max. System Voltage, 19.81% Efficiency, 0, +4.99 Watt Power Tolerance, MC4 Compatible Connector, 4 mm, Portrait: 255 mm(+)/355 mm(-); Landscape:1200 mm Output Cables, IP68, 3 Diodes Junction Box, Anodized Aluminium Alloy Frame Construction, 3.2 mm AR Coating Tempered Glass, Low Iron Front Glass, 0.38%/deg C Temperature Coefficient, -40 to 85 deg C Operating Temperature, 2015 mm x 1002 mm x 40 mm, 23 kg
