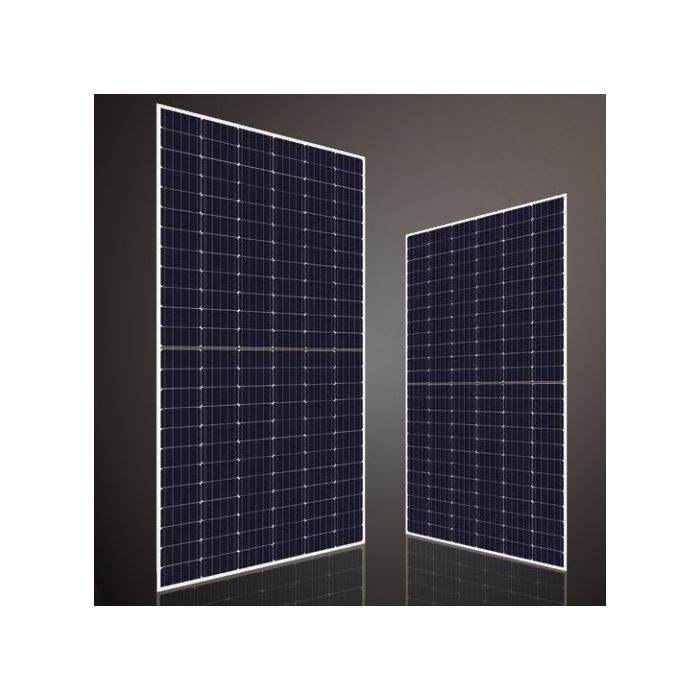

Seraphim Blade Solar Panel 380 Watt Mono-Crystalline PERC 144 Cells
Seraphim Blade Solar Panel 380 Watt Mono-Crystalline PERC 144 Cells
In stock
SKU
SERSRP-380-BMA
Solar Panel, Monocrystalline PERC, 144 Cells, 380 Watt, 41 Volt, 9.39 Amp, 48.5 Volt Open Circuit, 9.87 Amp Short Circuit Current, 20 Amp Max. Fuse Current, 1000 Volt DC Max. System Voltage, 19.44% Efficiency, 0, +4.99 Watt Power Tolerance, MC4 Compatible Connector, 4 mm, Portrait: 255 mm(+)/355 mm(-); Landscape:1200 mm Output Cables, IP68, 3 Diodes Junction Box, Anodized Aluminium Alloy Frame Construction, 3.2 mm AR Coating Tempered Glass, Low Iron Front Glass, 0.38%/deg C Temperature Coefficient, -40 to 85 deg C Operating Temperature, 1996 mm x 992 mm x 40 mm, 22.5 kg
| Brand | Seraphim |
|---|---|
| Range Name | Blade |
| Standard Pack Size | 1 |
| UNSPSC Class | 26111600 |
| UOM | EA |
| Vendor Product | SRP-380-BMA |
| Cell Type | Monocrystalline |
| Connector Type | MC4 Compatible |
| Efficiency | 19.44% |
| Frame Construction | Anodized Aluminium |
| Front Glass | 3.2 mm AR Coating Tempered Glass/Low Iron |
| Height | 40 mm |
| Item Weight | 22.5 kg |
| Junction Box | IP68/3 Diodes |
| Length | 1996 mm |
| Max. Current | 9.39 Amp |
| Max. Voltage | 41 Volt |
| Max. Fuse Current | 20 Amp |
| Max. System Voltage | 1000 Volt DC |
| Number Of Cells | 144 |
| Open Circuit Voltage | 48.5 Volt |
| Output Cables | 4 sq-mm/Portrait: 255 mm(+)/355 mm(-): Landscape:1200 mm |
| Operating Temperature | -40 to 85 deg C |
| Power Tolerance | 0 +4.99 Watt |
| Short Circuit Current | 9.87 Amp |
| Temperature Coefficient | 0.38%/deg C |
| Product Type | Solar Panels |
| Width | 992 mm |
| Wattage | 380 Watt |
Description
Solar Panel, Monocrystalline PERC, 144 Cells, 380 Watt, 41 Volt, 9.39 Amp, 48.5 Volt Open Circuit, 9.87 Amp Short Circuit Current, 20 Amp Max. Fuse Current, 1000 Volt DC Max. System Voltage, 19.44% Efficiency, 0, +4.99 Watt Power Tolerance, MC4 Compatible Connector, 4 mm, Portrait: 255 mm(+)/355 mm(-); Landscape:1200 mm Output Cables, IP68, 3 Diodes Junction Box, Anodized Aluminium Alloy Frame Construction, 3.2 mm AR Coating Tempered Glass, Low Iron Front Glass, 0.38%/deg C Temperature Coefficient, -40 to 85 deg C Operating Temperature, 1996 mm x 992 mm x 40 mm, 22.5 kg
