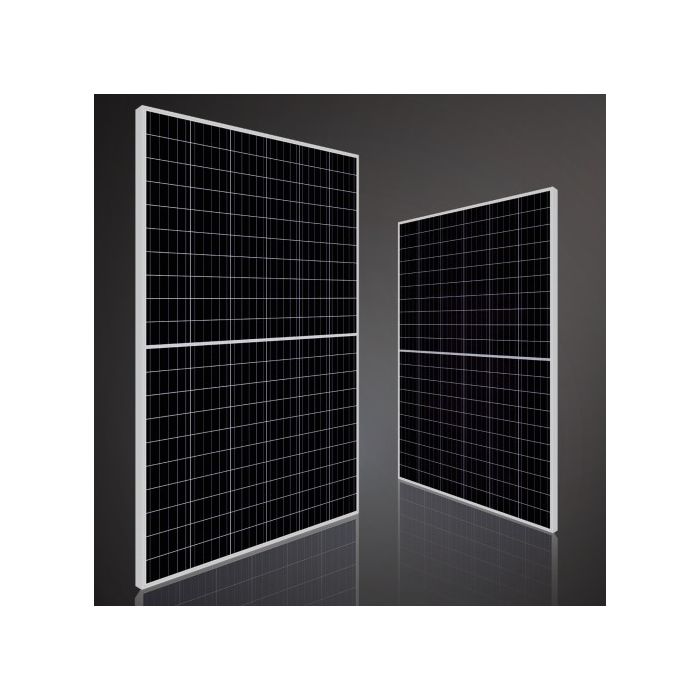

Seraphim Blade Solar Panel 330 Watt Mono-Crystalline PERC 120 Cells
Seraphim Blade Solar Panel 330 Watt Mono-Crystalline PERC 120 Cells
In stock
SKU
SERSRP-330-BMB
Solar Panel, Monocrystalline PERC, 120 Cells, 330 Watt, 34.4 Volt, 9.6 Amp, 40.8 Volt Open Circuit, 10.11 Amp Short Circuit Current, 20 Amp Max. Fuse Current, 1000 Volt DC Max. System Voltage, 19.49% Efficiency, 0, +4.99 Watt Power Tolerance, MC4 Compatible Connector, 4 mm, Portrait: 255 mm(+)/355 mm(-); Landscape:1200 mm Output Cables, IP68, 3 Diodes Junction Box, Anodized Aluminium Alloy Frame Construction, 3.2 mm AR Coating Tempered Glass, Low Iron Front Glass, 0.38%/deg C Temperature Coefficient, -40 to 85 deg C Operating Temperature, 1690 mm x 1002 mm x 35 mm, 19 kg
| Brand | Seraphim |
|---|---|
| Range Name | Blade |
| Standard Pack Size | 1 |
| UNSPSC Class | 26111600 |
| UOM | EA |
| Vendor Product | SRP-330-BMB |
| Cell Type | Monocrystalline |
| Connector Type | MC4 Compatible |
| Efficiency | 19.49% |
| Frame Construction | Anodized Aluminium |
| Front Glass | 3.2 mm AR Coating Tempered Glass/Low Iron |
| Height | 35 mm |
| Item Weight | 19 kg |
| Junction Box | IP68/3 Diodes |
| Max. System Voltage | 1000 Volt DC |
| Max. Fuse Current | 20 Amp |
| Length | 1690 mm |
| Max. Current | 9.6 Amp |
| Max. Voltage | 34.4 Volt |
| Open Circuit Voltage | 40.8 Volt |
| Number Of Cells | 120 |
| Operating Temperature | -40 to 85 deg C |
| Output Cables | 4 sq-mm/Portrait: 255 mm(+)/355 mm(-): Landscape:1200 mm |
| Product Type | Solar Panels |
| Power Tolerance | 0 +4.99 Watt |
| Short Circuit Current | 10.11 Amp |
| Temperature Coefficient | 0.38%/deg C |
| Wattage | 330 Watt |
| Width | 1002 mm |
Description
Solar Panel, Monocrystalline PERC, 120 Cells, 330 Watt, 34.4 Volt, 9.6 Amp, 40.8 Volt Open Circuit, 10.11 Amp Short Circuit Current, 20 Amp Max. Fuse Current, 1000 Volt DC Max. System Voltage, 19.49% Efficiency, 0, +4.99 Watt Power Tolerance, MC4 Compatible Connector, 4 mm, Portrait: 255 mm(+)/355 mm(-); Landscape:1200 mm Output Cables, IP68, 3 Diodes Junction Box, Anodized Aluminium Alloy Frame Construction, 3.2 mm AR Coating Tempered Glass, Low Iron Front Glass, 0.38%/deg C Temperature Coefficient, -40 to 85 deg C Operating Temperature, 1690 mm x 1002 mm x 35 mm, 19 kg
