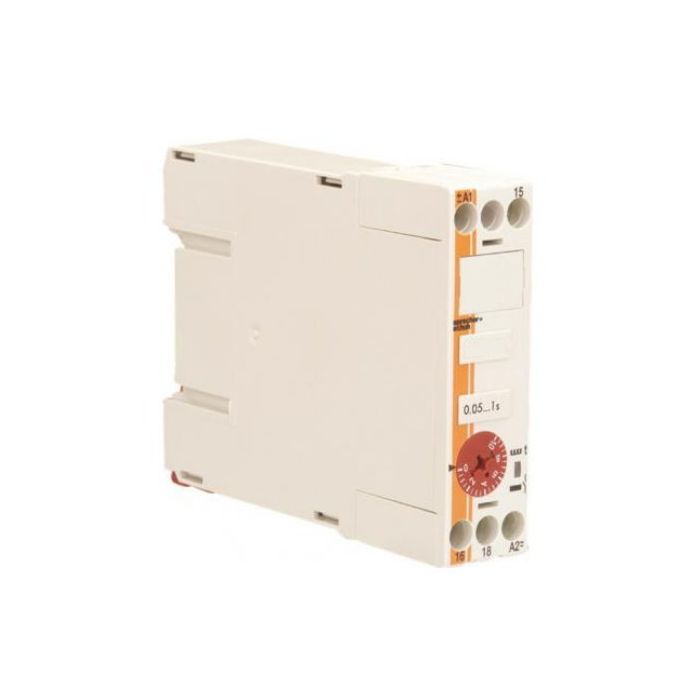

Sprecher+Schuh Time Delay Relay Electronic DIN 35 Rail Mount 1CO Function I ON Delay Pulse Generator 3s-1min 346/440V
Sprecher+Schuh Time Delay Relay Electronic DIN 35 Rail Mount 1CO Function I ON Delay Pulse Generator 3s-1min 346/440V
In stock
SKU
S&SRZ7-FSI3EA40
Time Delay Relay Electronic, 346/440 Volt AC, 1 mA, 5 VA AC, 0.5 Watt DC, 1CO, Timing Function: Function I ON Delay Pulse Generator, Timing Range: 3 sec-1 min, 30000000 Mechanical, 200000 Electrical Cycles, Tightening Torque: 0.8-1.2 N/m, Screw Terminal, DIN Mount 35 Rail, IP20, IP30, -25 to 45 deg C, 78.8 mm Height, 22.5 mm Width, 109 mm Depth
| Features |
|
|---|---|
| Brand | Sprecher+Schuh |
| Range Name | RZ7-FSI3 |
| Standard Pack Size | 1 |
| UNSPSC Class | 39122300 |
| UOM | EA |
| Vendor Product | RZ7FSI3EA40 |
| Contact Configuration | 1 Changeover |
| Current | 1 mA |
| Depth | 109 mm |
| Operating Cycles | 30000000 Mechanical/200000 Electrical Cycles |
| Height | 78.8 mm |
| IP Rating | IP20/30 |
| Mounting Method | DIN Rail |
| Power Rating | 5 VA AC/0.5 Watt DC |
| Product Type | Time Delay Relays |
| Temperature | -25 to 45 deg C |
| Terminal Connection | Screw |
| Voltage | 346-440 Volt AC |
| Timing Function | Function I ON Delay Pulse Generator |
| Tightening Torque | 0.8-1.2 N/m |
| Timing Range | 3 Seconds-1 Minute |
| Width | 22.5 mm |
Description
Time Delay Relay Electronic, 346/440 Volt AC, 1 mA, 5 VA AC, 0.5 Watt DC, 1CO, Timing Function: Function I ON Delay Pulse Generator, Timing Range: 3 sec-1 min, 30000000 Mechanical, 200000 Electrical Cycles, Tightening Torque: 0.8-1.2 N/m, Screw Terminal, DIN Mount 35 Rail, IP20, IP30, -25 to 45 deg C, 78.8 mm Height, 22.5 mm Width, 109 mm Depth
