Sprecher+Schuh Pilot Indicator Complete Metal Body LED White

Sprecher+Schuh Pilot Indicator Complete Metal Body LED White

In stock
SKU
S&SD7M-P7-MN3W
Add to Compare

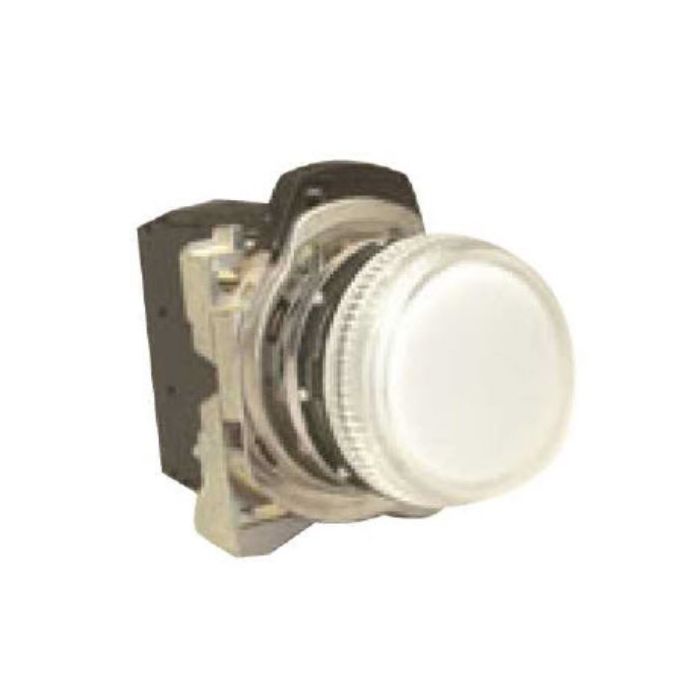

main product photo
Pilot Indicator Complete Metal Body, 24 Volt AC/DC LED Block, LED, White, Screw Terminal, Panel Mount, IP65, IP66, NEMA ICS-5, Housing: Metal, Bezel: Zinc, Lens: POM/Acetal/Polyacetal/Polyformaldehyde, 29.6 mm Diameter, -25 to 70 deg C
More Information
More Information
Features
  • D7 pilot devices offer maximum flexibility and a wide choice for all 22.5mm operator applications with all type (e-stops, selector switches, pushbuttons, pilot lights and more), colour and contact configurations
  • Aesthetically appealing and modularly designed to make assembly and interchangeability easy
  • Operators exhibit low profile and stylish appearance while maintaining the rugged performance necessary for demanding environments
  • D7P is a plastic operator with a captive black plastic front bezel
  • Constructed of high grade thermoplastics, the D7P operators provide strong chemical resistance making them suitable for use in different environments
  • D7M has a die-cast zinc housing and mounting ring for rugged durability
  • Finished with corrosion resistant chrome plating, the D7M also features a captive shiny metal bezel for a polished appearance
  • Chromated zinc and stainless steel fixing collar material
Brand Sprecher+Schuh
Range Name D7
Standard Pack Size 1
UNSPSC Class 39121500
UOM EA
Vendor Product D7MP7MN3W
Diameter 29.6 mm
Housing Material Metal
IP Rating IP65/66
Lamp Colour White
Lamp Type LED
Mounting Method Panel
Product Type Pilot Indicators
NEMA Rating NEMA ICS-5
Temperature -25 to 70 deg C
Terminal Connection Screw
Voltage 24 Volt AC/DC

Description

Pilot Indicator Complete Metal Body, 24 Volt AC/DC LED Block, LED, White, Screw Terminal, Panel Mount, IP65, IP66, NEMA ICS-5, Housing: Metal, Bezel: Zinc, Lens: POM/Acetal/Polyacetal/Polyformaldehyde, 29.6 mm Diameter, -25 to 70 deg C
