Sprecher+Schuh Operator Contact Block With Screw Terminals 1N.C 110-120/240/125V Late-Break 22.5 mm Panel Mount

Sprecher+Schuh Operator Contact Block With Screw Terminals 1N.C 110-120/240/125V Late-Break 22.5 mm Panel Mount

In stock
SKU
S&SD7-X01L
Add to Compare

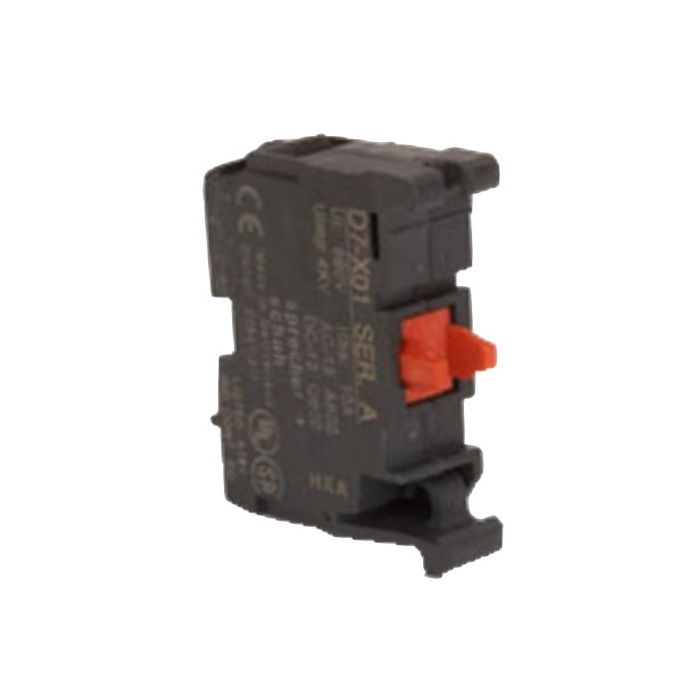

main product photo
Operator Contact Block With Screw Terminals, Size: 22.5 mm, 110-120/240/125 Volt, 6/3/0.55 Amp, 1NC, Late-Break, Screw Terminal, Panel Mount, IP65, IP66
More Information
More Information
Features
  • D7 pilot devices offer maximum flexibility and a wide choice for all 22.5mm operator applications with all type (e-stops, selector switches, pushbuttons, pilot lights and more), colour and contact configurations
  • Aesthetically appealing and modularly designed to make assembly and interchangeability easy
  • Operators exhibit low profile and stylish appearance while maintaining the rugged performance necessary for demanding environments
  • D7P is a plastic operator with a captive black plastic front bezel
  • Constructed of high grade thermoplastics, the D7P operators provide strong chemical resistance making them suitable for use in different environments and strong chemical resistance
  • D7M has a die-cast zinc housing and mounting ring for rugged durability
  • Finished with corrosion resistant chrome plating, the D7M also features a captive shiny metal bezel for a polished appearance
Brand Sprecher+Schuh
Range Name D7
Standard Pack Size 1
UNSPSC Class 39122200
UOM EA
Vendor Product D7X01L
Contact Configuration 1 Normally Closed
Current 6/3/0.55 Amp
Contact Operation Late-Break
IP Rating IP65/66
Product Type Operator Contact Blocks
Mounting Method Panel
Size 22.5 mm
Voltage 110-120-240-125 Volt
Terminal Connection Screw

Description

Operator Contact Block With Screw Terminals, Size: 22.5 mm, 110-120/240/125 Volt, 6/3/0.55 Amp, 1NC, Late-Break, Screw Terminal, Panel Mount, IP65, IP66
