Sprecher+Schuh Pilot Lamp Block Integrated LED With Screw Terminals 240V White Panel Mount 22.5 mm

Sprecher+Schuh Pilot Lamp Block Integrated LED With Screw Terminals 240V White Panel Mount 22.5 mm

In stock
SKU
S&SD7-N7W
Add to Compare

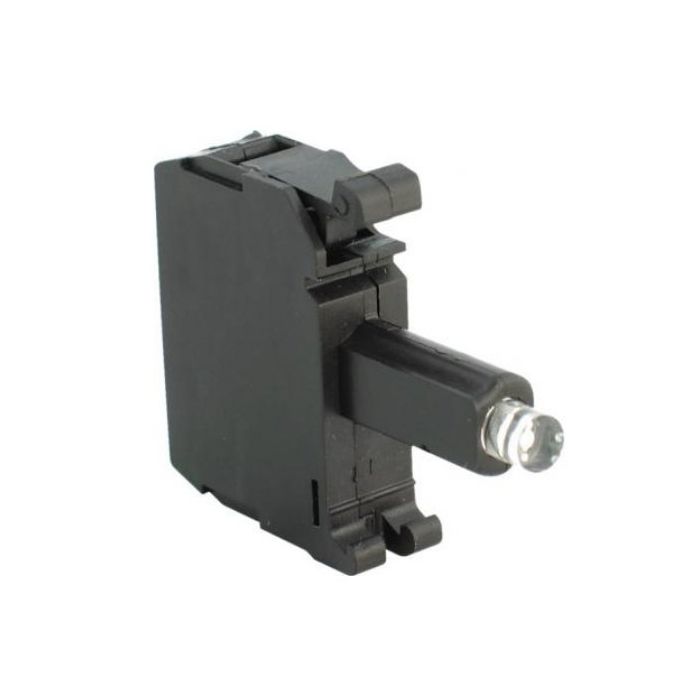

main product photo
Pilot Lamp Block, 240 Volt AC, 0.022 Amp, Integrated LED, Screw Terminal, Panel Mounting, For Use With Pilot Lights, IP65/66, Glass-Filled Nylon/PA6/PA66 Housing, White, -25 to 70 deg C, 22.5 mm
More Information
More Information
Features
  • D7 pilot devices offer maximum flexibility and a wide choice for all 22.5 mm operator applications with all type (e-stops, selector switches, pushbuttons, pilot lights and more), colour and contact configurations
  • Aesthetically appealing and modularly designed to make assembly and interchangeability easy
  • Operators exhibit low profile and stylish appearance while maintaining the rugged performance necessary for demanding environments
  • D7P is a plastic operator with a captive black plastic front bezel
  • Constructed of high grade thermoplastics, the D7P operators provide strong chemical resistance making them suitable for use in different environments and strong chemical resistance
  • D7M has a die-cast zinc housing and mounting ring for rugged durability
  • Finished with corrosion resistant chrome plating, the D7M also features a captive shiny metal bezel for a polished appearance
Brand Sprecher+Schuh
Range Name D7
Standard Pack Size 1
UNSPSC Class 39122200
UOM EA
Vendor Product D7N7W
Colour White
Current 0.022 Amp
For Use With Pilot Lights
Housing Material Glass-Filled Nylon/PA6/PA66
Lamp Type Integrated LED
IP Rating IP65/66
Mounting Method Panel
Product Type Pilot Lamp Blocks
Size 22.5 mm
Temperature -25 to 70 deg C
Voltage 240 Volt AC
Terminal Connection Screw

Description

Pilot Lamp Block, 240 Volt AC, 0.022 Amp, Integrated LED, Screw Terminal, Panel Mounting, For Use With Pilot Lights, IP65/66, Glass-Filled Nylon/PA6/PA66 Housing, White, -25 to 70 deg C, 22.5 mm
