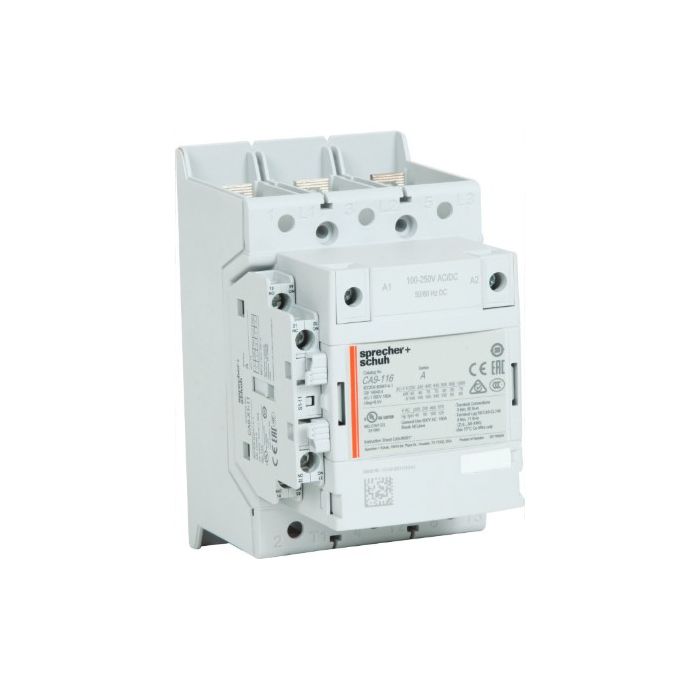

Sprecher+Schuh Non-Reversing Contactor 3 Pole 55kW 116A AC3 160A AC1 24-60VAC/DC 1NO-1NC Auxiliary Electronic
Sprecher+Schuh Non-Reversing Contactor 3 Pole 55kW 116A AC3 160A AC1 24-60VAC/DC 1NO-1NC Auxiliary Electronic
In stock
SKU
S&SCA91161124WL
Non-Reversing Contactor, 24-60 Volt AC/DC, AC3 Rating (kW): 55 kW, AC3 Rating (Amps): 46 at 1000 Volt, 116 at 415 Volt, 65 at 690 Volt, AC1 Rating (Amps): 160 at 1 kV/690 Volt, 1NO-1NC Auxiliary, 3 Pole, Operating Time: 20-55 ms Closing Delay, 40-70 ms Opening Delay, 150 mm Height, 90 mm Width, Without PLC Interface, Electronic Coil
| Features |
|
|---|---|
| Brand | Sprecher+Schuh |
| Range Name | CA9 |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121500 |
| UOM | EA |
| Vendor Product | CA91161124WL |
| AC1 Rating (Amps) | 160 Amp AC1 |
| AC3 Rating (Amps) | 46/116/65 Amp AC3 |
| AC3 Rating (kW) | 55 kW |
| Contact Configuration | 1 Normally Opened & 1 Normally Closed Aux |
| Height | 150 mm |
| Number Of Poles | 3 Pole |
| Operating Coil Voltage | 24-60 Volt AC/DC |
| Operating Time | 20-55 ms Closing/40-70 ms Opening |
| Please Note | Without PLC Interface, Electronic Coil |
| Product Type | Contactors Non-Reversing |
| Width | 90 mm |
Description
Non-Reversing Contactor, 24-60 Volt AC/DC, AC3 Rating (kW): 55 kW, AC3 Rating (Amps): 46 at 1000 Volt, 116 at 415 Volt, 65 at 690 Volt, AC1 Rating (Amps): 160 at 1 kV/690 Volt, 1NO-1NC Auxiliary, 3 Pole, Operating Time: 20-55 ms Closing Delay, 40-70 ms Opening Delay, 150 mm Height, 90 mm Width, Without PLC Interface, Electronic Coil
