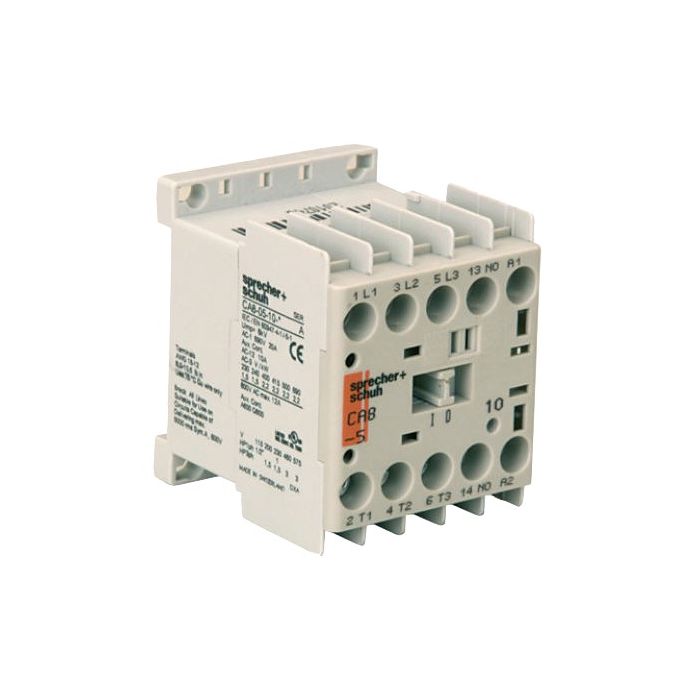

Miniature Contactor General Purpose DC Operated 3 Pole 2.2kW 4.9A AC3 20A AC1 125VDC 3NO Main 1NO Aux DIN Rail Mount

Miniature Contactor General Purpose DC Operated 3 Pole 2.2kW 4.9A AC3 20A AC1 125VDC 3NO Main 1NO Aux DIN Rail Mount

In stock
SKU
S&SCA8-5C-10-125VDC
Miniature Contactor General Purpose DC Operated Standard, 125 Volt DC, AC3 Rating (kW): 2.2 at 415/690 Volt, AC3 Rating (Amps): 4.9 at 415 Volt, 2.8 at 690 Volt, AC1 Rating (Amps): 20 at 415 Volt, 3NO Main, 1NO Auxiliary, 3 Pole, Screw Terminal, DIN Rail Mount or Base, IP20, 54 mm Height, 45 mm Width, 49 mm Depth, Conventional Coil
More Information
Features
  • Features low profile design and 45 mm width, permitting the use of enclosures with shallow mounting depths
  • Accessories require no additional panel space
  • Available in DC control coil versions to suit your application requirements
  • Several contactor families provide a wide variety of contactor sizes, offering economy and selection
  • Compact dimensions saves panel space
Brand Sprecher+Schuh
Range Name CA8
Standard Pack Size 1
UNSPSC Class 39121500
UOM EA
Vendor Product CA85C10125VDC
AC1 Rating (Amps) 20 Amp AC1
AC3 Rating (Amps) 4.9/2.8 Amp AC3
AC3 Rating (kW) 2.2 kW
Contact Configuration 3 Normally Opened & 1 Normally Opened Aux
Depth 49 mm
Height 54 mm
IP Rating IP20
Mounting Method DIN Rail/Base
Number Of Poles 3 Pole
Operating Coil Voltage 125 Volt DC
Please Note Conventional Coil
Product Type Contactors General
Terminal Connection Screw
Width 45 mm

Description

Miniature Contactor General Purpose DC Operated Standard, 125 Volt DC, AC3 Rating (kW): 2.2 at 415/690 Volt, AC3 Rating (Amps): 4.9 at 415 Volt, 2.8 at 690 Volt, AC1 Rating (Amps): 20 at 415 Volt, 3NO Main, 1NO Auxiliary, 3 Pole, Screw Terminal, DIN Rail Mount or Base, IP20, 54 mm Height, 45 mm Width, 49 mm Depth, Conventional Coil
