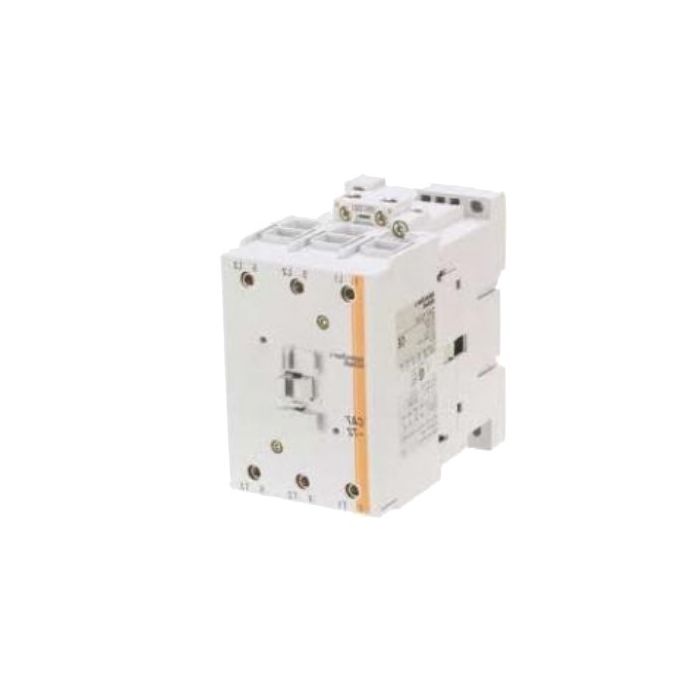

Contactor General Purpose AC Operated Non-Reversing 3 Pole 32kW 60A AC3 100A AC1 24V 3NO Main DIN Rail Mount
Contactor General Purpose AC Operated Non-Reversing 3 Pole 32kW 60A AC3 100A AC1 24V 3NO Main DIN Rail Mount
In stock
SKU
S&SCA7-60-00/24VAC-U
Contactor General Purpose AC Operated Non-Reversing Standard, 24 Volt AC, AC3 Rating (kW): 32, AC3 Rating (Amps): 60 at 415 Volt, 34 at 690 Volt, AC1 Rating (Amps): 100 at 415 Volt, 3NO Main, 3 Pole, DIN Rail Mount or Base, IP20, 122 mm Height, 72 mm Width, 3 Phase
| Features |
|
|---|---|
| Brand | Sprecher+Schuh |
| Range Name | CA7 |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121500 |
| UOM | EA |
| Vendor Product | CA7600024VACU |
| AC1 Rating (Amps) | 100 Amp AC1 |
| AC3 Rating (Amps) | 60/34 Amp AC3 |
| AC3 Rating (kW) | 32 kW |
| Contact Configuration | 3 Normally Opened |
| Height | 122 mm |
| IP Rating | IP20 |
| Mounting Method | DIN Rail/Base |
| Number Of Poles | 3 Pole |
| Operating Coil Voltage | 24 Volt AC |
| Please Note | 3 Phase |
| Product Type | Contactors Non-Reversing |
| Width | 72 mm |
Description
Contactor General Purpose AC Operated Non-Reversing Standard, 24 Volt AC, AC3 Rating (kW): 32, AC3 Rating (Amps): 60 at 415 Volt, 34 at 690 Volt, AC1 Rating (Amps): 100 at 415 Volt, 3NO Main, 3 Pole, DIN Rail Mount or Base, IP20, 122 mm Height, 72 mm Width, 3 Phase
