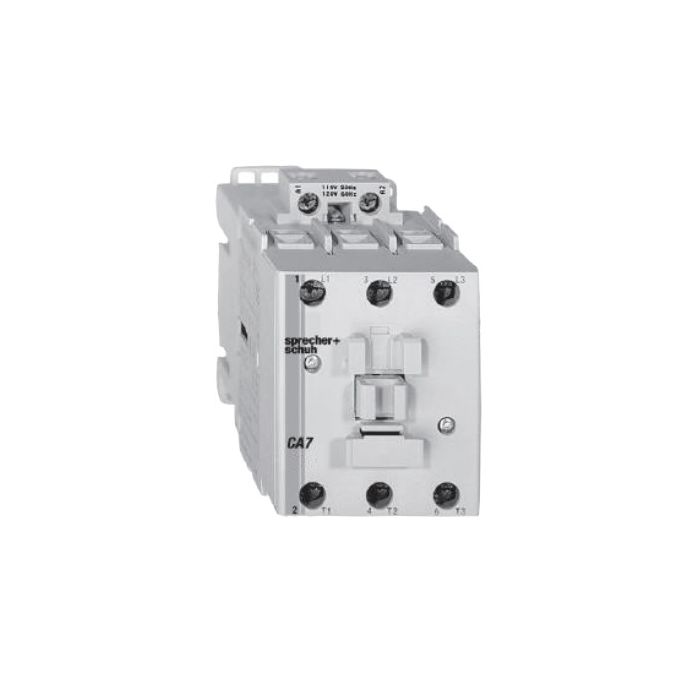

Contactor General Purpose AC Operated Non-Reversing 3 Pole 22kW 43A AC3 85A AC1 415V 3NO Main DIN Rail Mount
Contactor General Purpose AC Operated Non-Reversing 3 Pole 22kW 43A AC3 85A AC1 415V 3NO Main DIN Rail Mount
In stock
SKU
S&SCA7-43-00/415VAC
Contactor General Purpose AC Operated Non-Reversing Standard, 415 Volt AC, AC3 Rating (kW): 22 at 415/690 Volt, AC3 Rating (Amps): 43 at 415 Volt, 25 at 690 volt, AC1 Rating (Amps): 85 at 415 Volt, 3NO Main, 3 Pole, DIN Rail Mount, IP20, 81 mm Height, 54 mm Width, Conventional Coil
| Features |
|
|---|---|
| Brand | Sprecher+Schuh |
| Range Name | CA7 |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121500 |
| UOM | EA |
| Vendor Product | CA74300415VAC |
| AC1 Rating (Amps) | 85 Amp AC1 |
| AC3 Rating (Amps) | 43/25 Amp AC3 |
| AC3 Rating (kW) | 22 kW |
| Contact Configuration | 3 Normally Opened |
| Height | 81 mm |
| IP Rating | IP20 |
| Mounting Method | DIN Rail |
| Number Of Poles | 3 Pole |
| Operating Coil Voltage | 415 Volt AC |
| Please Note | Conventional Coil |
| Product Type | Contactors Non-Reversing |
| Width | 54 mm |
Description
Contactor General Purpose AC Operated Non-Reversing Standard, 415 Volt AC, AC3 Rating (kW): 22 at 415/690 Volt, AC3 Rating (Amps): 43 at 415 Volt, 25 at 690 volt, AC1 Rating (Amps): 85 at 415 Volt, 3NO Main, 3 Pole, DIN Rail Mount, IP20, 81 mm Height, 54 mm Width, Conventional Coil
