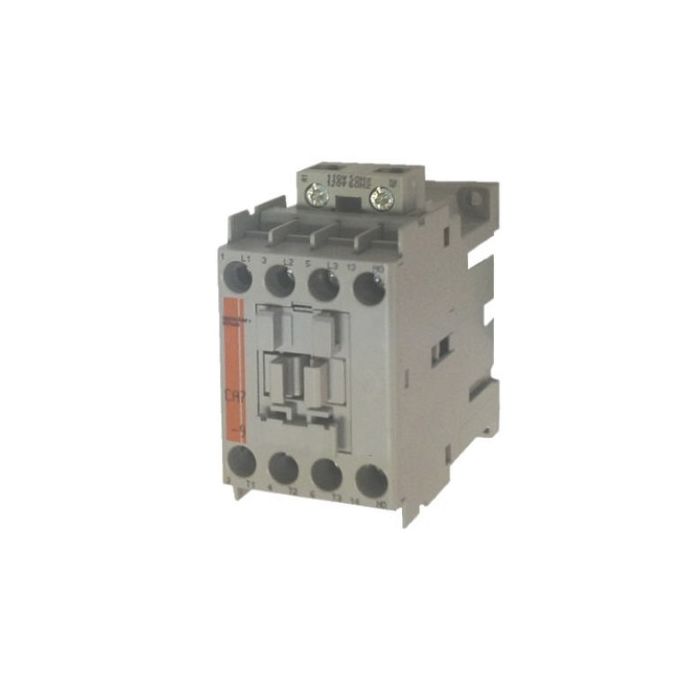

Contactor General Purpose AC Operated Non-Reversing 4 Pole 11kW 23A AC3 32A AC1 415V 3NO-1NC Main DIN Rail Mount
Contactor General Purpose AC Operated Non-Reversing 4 Pole 11kW 23A AC3 32A AC1 415V 3NO-1NC Main DIN Rail Mount
In stock
SKU
S&SCA7-23-M31/415VAC
Contactor General Purpose AC Operated Non-Reversing Standard, 415 Volt AC, AC3 Rating (kW): 11 at 415 Volt, 10 at 690 Volt, AC3 Rating (Amps): 23 at 415 Volt, 12 at 690 Volt, AC1 Rating (Amps): 32 at 415 Volt, 3NO-1NC Main, 4 Pole, DIN Rail Mount, IP20, 80 mm Height, 45 mm Width, Conventional Coil
| Features |
|
|---|---|
| Brand | Sprecher+Schuh |
| Range Name | CA7 |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121500 |
| UOM | EA |
| Vendor Product | CA723M31415VAC |
| AC1 Rating (Amps) | 32 Amp AC1 |
| AC3 Rating (Amps) | 23/12 Amp AC3 |
| AC3 Rating (kW) | 11/10 kW |
| Contact Configuration | 3 Normally Opened & 1 Normally Closed |
| Height | 80 mm |
| IP Rating | IP20 |
| Mounting Method | DIN Rail |
| Number Of Poles | 4 Pole |
| Operating Coil Voltage | 415 Volt AC |
| Please Note | Conventional Coil |
| Product Type | Contactors Non-Reversing |
| Width | 45 mm |
Description
Contactor General Purpose AC Operated Non-Reversing Standard, 415 Volt AC, AC3 Rating (kW): 11 at 415 Volt, 10 at 690 Volt, AC3 Rating (Amps): 23 at 415 Volt, 12 at 690 Volt, AC1 Rating (Amps): 32 at 415 Volt, 3NO-1NC Main, 4 Pole, DIN Rail Mount, IP20, 80 mm Height, 45 mm Width, Conventional Coil
