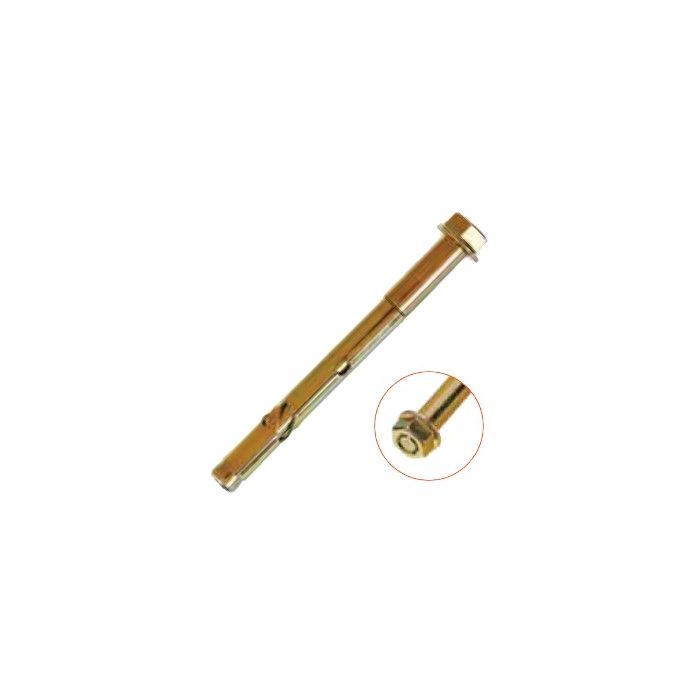

Ramset Masonry Sleeve Anchor Hex Nut Head Medium Duty 10x103mm Carbon Steel Zinc Plated
Ramset Masonry Sleeve Anchor Hex Nut Head Medium Duty 10x103mm Carbon Steel Zinc Plated
In stock
SKU
RAMDP10100
Sleeve Anchor Hex Nut Head Medium Duty, 10 mm Diameter, M8, Hex Nut Head, 103 mm Length, 80 mm Drill Depth, 10 mm Drill Diameter, 45 mm Embedment Depth, 50 mm Maximum Fixture Thickness, 12 mm Fixture Hole Diameter, 70 mm Minimum Edge Distance, 135 mm Minimum Spacing, 5.9 kN Tensile Strength, 35 Nm Torque Rating, Carbon Steel, Zinc Plated, For Use With Concrete, Solid Brick, Solid Block, Hollow Brick, Hollow Block, Hollow Slab, 25
| Features |
|
|---|---|
| Brand | Ramset |
| Range Name | DynaBolt Plus |
| Standard Pack Size | 25 |
| UNSPSC Class | 31162100 |
| UOM | EA |
| Vendor Product | RAMDP10100 |
| Diameter | 10 mm |
| Drill Diameter | 10 mm |
| Drill Depth | 80 mm |
| Embedment Depth | 45 mm |
| Finish | Zinc Plated |
| Fixture Hole Diameter | 12 mm |
| For Use With | Concrete/Solid Brick/Solid Block/Hollow Brick/Hollow Block |
| Head Type | Hex Nut |
| Length | 103 mm |
| Maximum Fixture Thickness | 50 mm |
| Material | Carbon Steel |
| Minimum Spacing | 135 mm |
| Minimum Edge Distance | 70 mm |
| Pack Size | 25 Pack |
| Product Type | simple |
| Tensile Strength | 5.9 kN |
| Thread Size | M8 |
| Torque Rating | 35 Nm |
Description
Sleeve Anchor Hex Nut Head Medium Duty, 10 mm Diameter, M8, Hex Nut Head, 103 mm Length, 80 mm Drill Depth, 10 mm Drill Diameter, 45 mm Embedment Depth, 50 mm Maximum Fixture Thickness, 12 mm Fixture Hole Diameter, 70 mm Minimum Edge Distance, 135 mm Minimum Spacing, 5.9 kN Tensile Strength, 35 Nm Torque Rating, Carbon Steel, Zinc Plated, For Use With Concrete, Solid Brick, Solid Block, Hollow Brick, Hollow Block, Hollow Slab, 25
