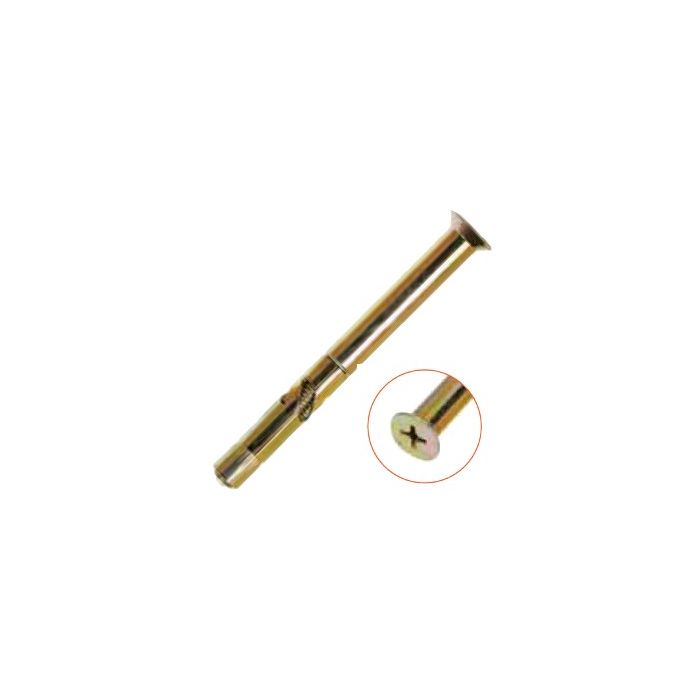

Ramset Masonry Sleeve Anchor Countersunk Head Medium Duty 6x60mm Carbon Steel Zinc Plated
Ramset Masonry Sleeve Anchor Countersunk Head Medium Duty 6x60mm Carbon Steel Zinc Plated
In stock
SKU
RAMDP06060F
Masonry Sleeve Anchor Countersunk Head Medium Duty, 6 mm, M4.5 Thread, 60mm Length, 25mm Effective Length, 50mm Min Drill Depth, 6mm Drill Diameter, Carbon Steel, Zinc Plated, 25mm Embedment Depth, 30mm Max. Fixture Thickness, 8mm Fixture Hole Diameter, 55mm Min. Edge Distance, 75mm Min. Spacing, Tensile Strength: 2.7 kN, Shear Strength: 2.5 kN, Torque Rating: 10 N-m, For Use With: Concrete, Solid Brick, Solid Block, Hollow Brick, Hollow Block, Hollow Slab
| Features |
|
|---|---|
| Brand | Ramset |
| Range Name | DynaBolt |
| Standard Pack Size | 100 |
| UNSPSC Class | 31162100 |
| UOM | EA |
| Vendor Product | RAMDP06060F |
| Drill Diameter | 6mm |
| Drill Depth | 50mm Min |
| Diameter | 6mm |
| Embedment Depth | 25mm |
| Finish | Zinc Plated |
| Fixture Hole Diameter | 8mm |
| For Use With | Concrete/Solid Brick/Solid Block/Hollow Brick/Hollow Block/Hollow Slab |
| Head Type | Countersunk |
| Material | Carbon Steel |
| Length | 60mm |
| Maximum Fixture Thickness | 30mm |
| Minimum Edge Distance | 55mm |
| Minimum Spacing | 75mm |
| Product Type | simple |
| Tensile Strength | 2.7 kN |
| Thread Size | M4.5 |
| Torque Rating | 10 N-m |
Description
Masonry Sleeve Anchor Countersunk Head Medium Duty, 6 mm, M4.5 Thread, 60mm Length, 25mm Effective Length, 50mm Min Drill Depth, 6mm Drill Diameter, Carbon Steel, Zinc Plated, 25mm Embedment Depth, 30mm Max. Fixture Thickness, 8mm Fixture Hole Diameter, 55mm Min. Edge Distance, 75mm Min. Spacing, Tensile Strength: 2.7 kN, Shear Strength: 2.5 kN, Torque Rating: 10 N-m, For Use With: Concrete, Solid Brick, Solid Block, Hollow Brick, Hollow Block, Hollow Slab
