Dulmison Insulation Piercing Connector with Shear Head Bolts 50-150mm Aluminium

Dulmison Insulation Piercing Connector with Shear Head Bolts 50-150mm Aluminium

In stock
SKU
DUMK475
Add to Compare

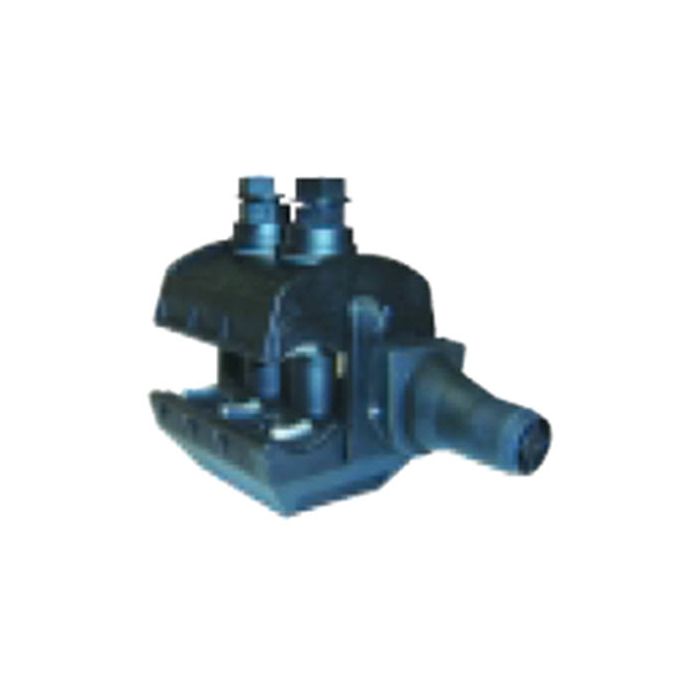

main product photo
Insulation Piercing Connector with Shear Head Bolts, 50-240 mm Conductor Bare, 50-150 mm Conductor Insulated, 2 Bolts, Standard Connector, Fastener A/F: 17 mm, Aluminium Body, with Shear Head Bolts
More Information
More Information
Features
  • Insulated types suit both aluminium and copper cables - bi-metallic
  • Conform to the requirements of AS/NZS4396
  • Plastic components are UV stabilised glass reinforced polymer
  • All fasteners are stainless steel
  • All connections are made using torque controlled shear Off screw
  • Connectors are completely water tight to prevent corrosion
  • Di-electric strength in water is over 6 kV
  • Flexible end sealing caps
  • Fastener thread is shielded from cable area, to eliminate cable damage whilst tightening
  • Bare connections are made through contact plates compatible to conductor type
Brand Dulmison
Standard Pack Size 8
UNSPSC Class 39121400
UOM EA
Vendor Product DULK475
Body Material Aluminium
Conductor Size 50-240 mm Bare/50-150 mm Insulated
Number of Bolts 2
Product Type Insulation Piercing Connectors

Description

Insulation Piercing Connector with Shear Head Bolts, 50-240 mm Conductor Bare, 50-150 mm Conductor Insulated, 2 Bolts, Standard Connector, Fastener A/F: 17 mm, Aluminium Body, with Shear Head Bolts
