CJS Crimp Link Reducing Copper 300mm 185mm 98mm OAL

CJS Crimp Link Reducing Copper 300mm 185mm 98mm OAL

In stock
SKU
CJS-CRLINK-300/185

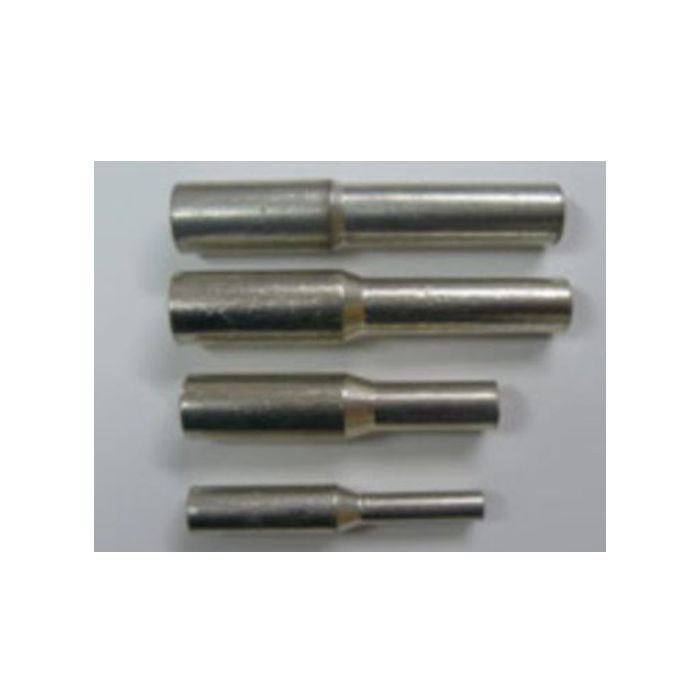

Crimp Links, Reducing, Copper, Conductor Size from 300 mm to 185 mm, Inside Diameter from 24 mm to 18.5 mm, Outside Diameter from 31.5 mm to 24 mm, 98 mm Overall Length, Copper Body
More Information
Features
  • The CRL links are a barrier type connector, they can be used in any situation where an impermeable barrier to oils or water is required
  • Also used where two different size cables are used
  • Suitable for LV and HV applications
  • Do not crimp close to the centre barrier or the link may break
Brand CJS
Range Name Reducing Links Copper
Standard Pack Size 1
UNSPSC Class 39121400
UOM EA
Vendor Product CJS-CRLINK-300/185
Body Material Copper
From Conductor Size 300 mm
From Inside Diameter 24 mm
From Outside Diameter 31.5 mm
Product Type Links Reducing Type
Overall Length 98 mm
To Conductor Size 185 mm
To Inside Diameter 18.5 mm
To Outside Diameter 24 mm

Description

Crimp Links, Reducing, Copper, Conductor Size from 300 mm to 185 mm, Inside Diameter from 24 mm to 18.5 mm, Outside Diameter from 31.5 mm to 24 mm, 98 mm Overall Length, Copper Body
