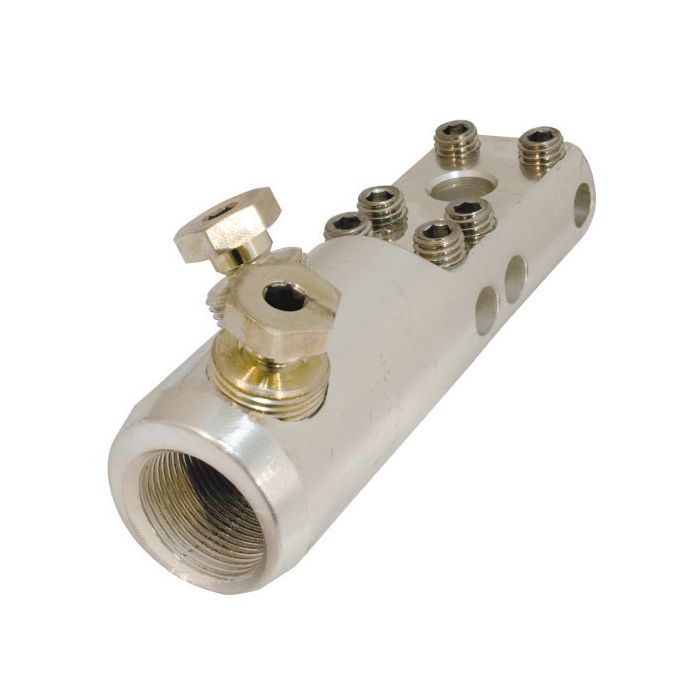

URD Lug & Terminal Block with Shear Head Bolts, Copper/Aluminium, 240 mm Conductor, Bi-Metal Body, Copper Conductor/Aluminium, Tin Plated Finish, with Shear Head Bolts
Designed to make looped pillar connection systems quick and easy - eliminates many of the components and crimping needs of current practices
For stranded, circular stranded and solid sector cables
Patented lug design
In-built terminal block with a series of range taking tunnels
Use with other Cabac URD covers and busbars
The main conductor is connected using the proven shear bolt technology, which eliminates the need for crimp tools, and attendant operator skills
The unique palm incorporates an in-built terminal block offering a series of range taking tunnels accommodating up to 50mmconductors for service connections
Two separate tunnels allow connection of street lighting conductors
To create the loop, connectors are bolted back to back, using two or three/four way buss bars, which allow branch off connections to be made with ease
A big advantage of this system, is the main looped conductors can be disconnected during servicing without the loss of the service connection
Brand
Cabac
Standard Pack Size
1
UNSPSC Class
39121400
UOM
EA
Vendor Product
BALURD240
Body Material
Bi-Metal
Conductive Material
Copper/Aluminium
Conductor Size
240 mm
Finish
Tin Plated
Product Type
Lugs Bolted
Description
URD Lug & Terminal Block with Shear Head Bolts, Copper/Aluminium, 240 mm Conductor, Bi-Metal Body, Copper Conductor/Aluminium, Tin Plated Finish, with Shear Head Bolts
