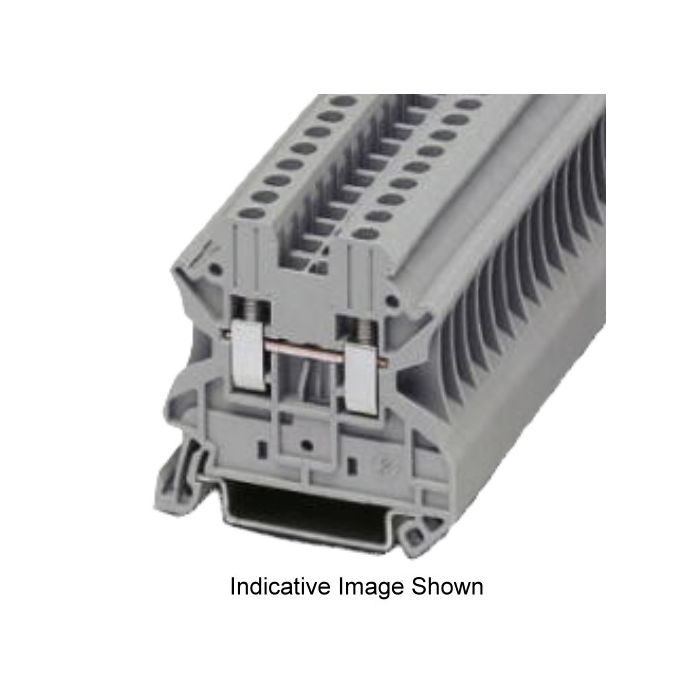

Phoenix Contact Rail Terminal Block Screwed 2 Wire 1 Level 0.14-6mm Grey Polyamide
Phoenix Contact Rail Terminal Block Screwed 2 Wire 1 Level 0.14-6mm Grey Polyamide
In stock
SKU
PHO3044102
Feed Through Terminal Block, 0.14-6 mm, 2 Conductors, 1000 Volt, 8 kV Rated Surge Voltage, 32 Amp, 9 mm Wire Strip Length, 0.6-0.8 Nm Tightening Torque, 2 Conductor Wiring Format, 2 Connection Points, 1 Potential, 1 Level, Screw Terminal, NS 35/15 - NS 35/7,5 Mounting, Polyamide Insulation, Grey, -60 to 110 deg C, UL94 V0 Flammability, 47.7 mm Height, 6.2 mm Width, 46.9 mm; 47.5 mm NS 35/7,5; 55 mm NS 35/15 Depth
| Features |
|
|---|---|
| Brand | Phoenix Contact |
| Standard Pack Size | 50 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 3044102 |
| Colour | Grey |
| Conductor Size | 0.14-6mm |
| Current Rating | 32 Amp |
| Flammability | UL94 V0 |
| Depth | 46.9 mm - 47.5 mm NS 35/7,5 - 55 mm NS 35/15 |
| Height | 47.7 mm |
| Insulation Material | Polyamide |
| Number of Levels | 1 |
| Number of Conductors | 2 |
| Number of Potentials | 1 |
| Mounting Method | NS 35/15 - NS 35/75 |
| Number of Connection Points | 2 |
| Product Type | Termninal Blocks |
| Rated Surge Voltage | 8 kV |
| Temperature | -60 to 110 deg C |
| Terminal Type | Screw |
| Tightening Torque | 0.6-0.8 Nm |
| Voltage Rating | 1000 Volt |
| Width | 6.2 mm |
| Wire Strip Length | 9 mm |
| Wiring Format | 2 Conductor |
Description
Feed Through Terminal Block, 0.14-6 mm, 2 Conductors, 1000 Volt, 8 kV Rated Surge Voltage, 32 Amp, 9 mm Wire Strip Length, 0.6-0.8 Nm Tightening Torque, 2 Conductor Wiring Format, 2 Connection Points, 1 Potential, 1 Level, Screw Terminal, NS 35/15 - NS 35/7,5 Mounting, Polyamide Insulation, Grey, -60 to 110 deg C, UL94 V0 Flammability, 47.7 mm Height, 6.2 mm Width, 46.9 mm; 47.5 mm NS 35/7,5; 55 mm NS 35/15 Depth
