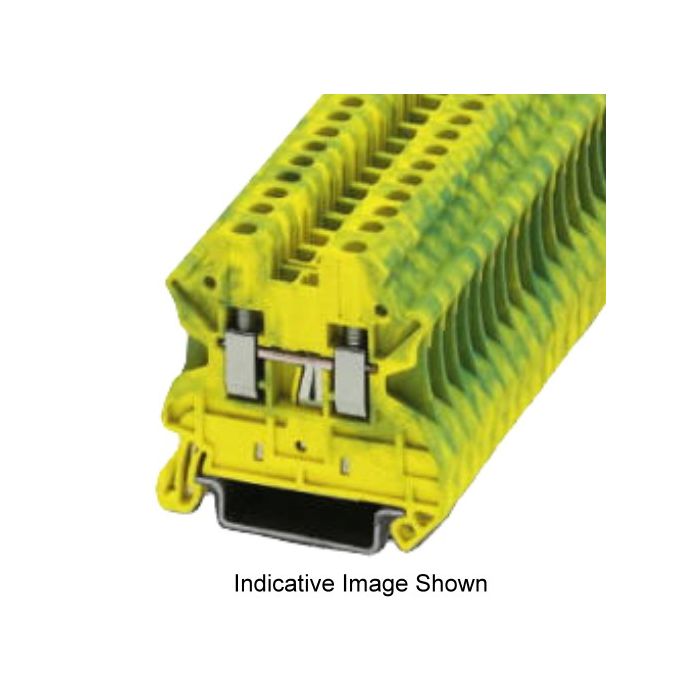

Phoenix Contact Rail Earth Terminal Block Screwed 2 Wire 1 Level 0.14-4mm Green/Yellow Polyamide
Phoenix Contact Rail Earth Terminal Block Screwed 2 Wire 1 Level 0.14-4mm Green/Yellow Polyamide
In stock
SKU
PHO3044092
Ground Terminal, 0.14-4 mm, 2 Conductors, 8 kV Rated Surge Voltage, 9 mm Wire Strip Length, 0.5-0.6 Nm Tightening Torque, 2 Conductor Wiring Format, 2 Connection Points, 1 Level, Screw Terminal, NS 35/15 - NS 35/7,5 Mounting, Polyamide Insulation, Green/Yellow, -60 to 110 deg C, UL94 V0 Flammability, 47.7 mm Height, 5.2 mm Width, 46.9 mm; 47.5 mm NS 35/7,5; 55 mm NS 35/15 Depth
| Features |
|
|---|---|
| Brand | Phoenix Contact |
| Range Name | Clipline UT |
| Standard Pack Size | 50 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 3044092 |
| Colour | Green/Yellow |
| Conductor Size | 0.14-4mm |
| Depth | 46.9 mm - 47.5 mm NS 35/75 - 55 mm NS 35/15 |
| Flammability | UL94 V0 |
| Height | 47.7 mm |
| Mounting Method | NS 35/15 - NS 35/75 |
| Number of Conductors | 2 |
| Number of Connection Points | 2 |
| Number of Levels | 1 |
| Insulation Material | Polyamide |
| Rated Surge Voltage | 8 kV |
| Temperature | -60 to 110 deg C |
| Terminal Type | Screw |
| Tightening Torque | 0.5-0.6 Nm |
| Wire Strip Length | 9 mm |
| Wiring Format | 2 Conductor |
| Width | 5.2 mm |
Description
Ground Terminal, 0.14-4 mm, 2 Conductors, 8 kV Rated Surge Voltage, 9 mm Wire Strip Length, 0.5-0.6 Nm Tightening Torque, 2 Conductor Wiring Format, 2 Connection Points, 1 Level, Screw Terminal, NS 35/15 - NS 35/7,5 Mounting, Polyamide Insulation, Green/Yellow, -60 to 110 deg C, UL94 V0 Flammability, 47.7 mm Height, 5.2 mm Width, 46.9 mm; 47.5 mm NS 35/7,5; 55 mm NS 35/15 Depth
