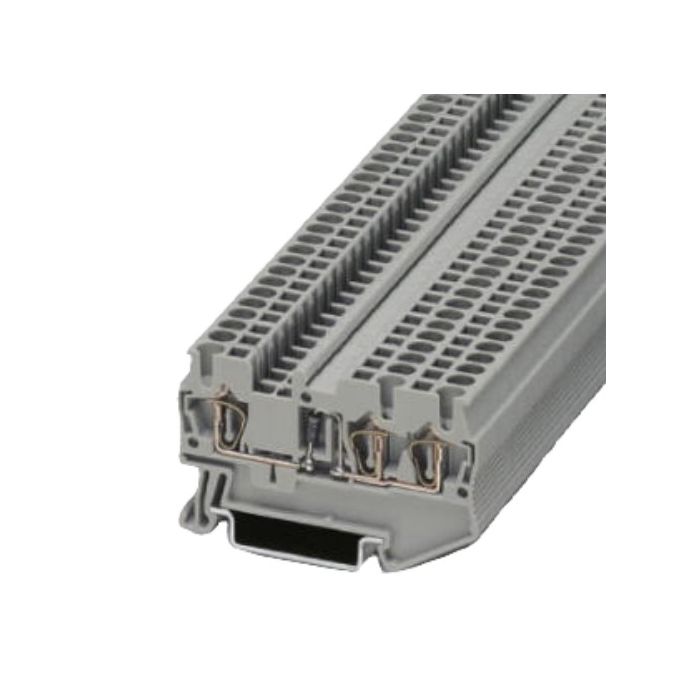

Phoenix Contact Rail Terminal Block Feed-Through Spring Cage 2 Wire 1 Level 0.08-4mm Grey Polyamide
Phoenix Contact Rail Terminal Block Feed-Through Spring Cage 2 Wire 1 Level 0.08-4mm Grey Polyamide
In stock
SKU
PHO3036246
Rail Terminal Block Spring Cage, 800 Volt, Rated Surge Voltage: 4 kV, 0.5 Amp, 0.08-4mm Conductor, 2 Conductors, Wire Strip Length: 8 to 10 mm, Wiring Format: 2 Conductor, 3 Connection Points, 1 Potentials, 1 Level, Spring Cage Terminal, NS 35/15, Insulation Material: Polyamide, Grey, -60 to 105 deg C, Flammability: V0, Height: 36.5 mm NS 35/7,5, 44 mm NS 35/15, 60.5 mm Width, 5.2 mm Depth
| Brand | Phoenix Contact |
|---|---|
| Standard Pack Size | 50 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 3036246 |
| Colour | Grey |
| Conductor Size | 0.08-4mm |
| Current Rating | 0.5 Amp |
| Depth | 5.2 mm |
| Flammability | V0 |
| Insulation Material | Polyamide |
| Height | 36.5 mm NS 35/75; 44 mm NS 35/15 |
| Mounting Method | NS 35/15 - NS 35/75 |
| Number of Conductors | 2 |
| Number of Connection Points | 3 |
| Number of Potentials | 1 |
| Number of Levels | 1 |
| Rated Surge Voltage | 4 kV |
| Product Type | Rail Terminal Blocks |
| Terminal Type | Spring Cage |
| Voltage Rating | 800 Volt |
| Width | 60.5 mm |
| Wire Strip Length | 8-10 mm |
| Wiring Format | 2 Conductor |
Description
Rail Terminal Block Spring Cage, 800 Volt, Rated Surge Voltage: 4 kV, 0.5 Amp, 0.08-4mm Conductor, 2 Conductors, Wire Strip Length: 8 to 10 mm, Wiring Format: 2 Conductor, 3 Connection Points, 1 Potentials, 1 Level, Spring Cage Terminal, NS 35/15, Insulation Material: Polyamide, Grey, -60 to 105 deg C, Flammability: V0, Height: 36.5 mm NS 35/7,5, 44 mm NS 35/15, 60.5 mm Width, 5.2 mm Depth
