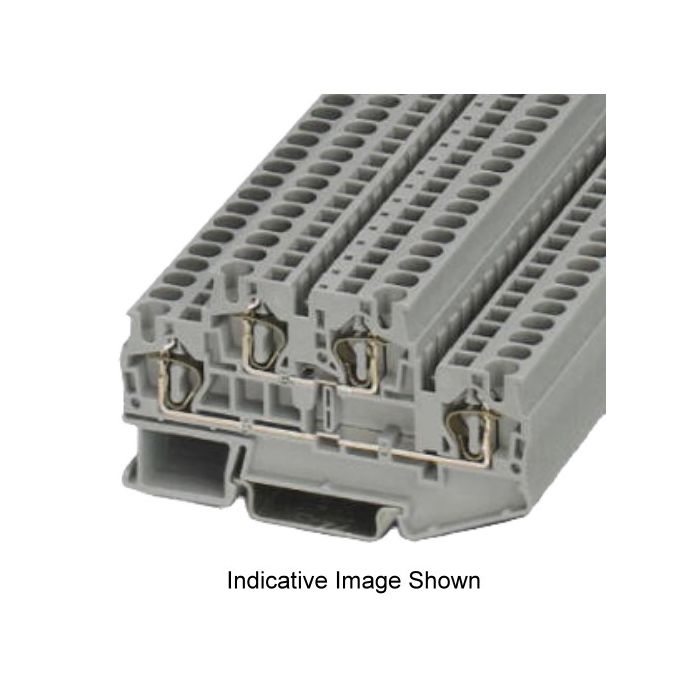

Phoenix Contact Rail Terminal Block Feed-Through Spring Cage 2 Wire 2 Level 0.08-6mm Grey Polyamide
Phoenix Contact Rail Terminal Block Feed-Through Spring Cage 2 Wire 2 Level 0.08-6mm Grey Polyamide
In stock
SKU
PHO3031429
Rail Terminal Block Spring Cage, 500 Volt, Rated Surge Voltage: 6 kV, 30 Amp, 0.08-6mm Conductor, 2 Conductors, Wire Strip Length: 8 to 10 mm, Wiring Format: 2 Conductor, 4 Connection Points, 2 Levels, Spring Cage Terminal, NS 35/15, Insulation Material: Polyamide, Grey, -60 to 105 deg C, Flammability: V0, Height: 47.5 mm NS 35/7,5, 55 mm NS 35/15, 83.5 mm Width, 6.2 mm Depth
| Features |
|
|---|---|
| Brand | Phoenix Contact |
| Standard Pack Size | 50 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 3031429 |
| Colour | Grey |
| Current Rating | 30 Amp |
| Conductor Size | 0.08-6mm |
| Depth | 6.2 mm |
| Flammability | V0 |
| Height | 47.5 mm NS 35/75; 55 mm NS 35/15 |
| Mounting Method | NS 35/15 - NS 35/75 |
| Number of Conductors | 2 |
| Number of Connection Points | 4 |
| Number of Levels | 2 |
| Insulation Material | Polyamide |
| Product Type | Rail Terminal Blocks |
| Rated Surge Voltage | 6 kV |
| Terminal Type | Spring Cage |
| Voltage Rating | 500 Volt |
| Wire Strip Length | 8-10 mm |
| Wiring Format | 2 Conductor |
| Width | 83.5 mm |
Description
Rail Terminal Block Spring Cage, 500 Volt, Rated Surge Voltage: 6 kV, 30 Amp, 0.08-6mm Conductor, 2 Conductors, Wire Strip Length: 8 to 10 mm, Wiring Format: 2 Conductor, 4 Connection Points, 2 Levels, Spring Cage Terminal, NS 35/15, Insulation Material: Polyamide, Grey, -60 to 105 deg C, Flammability: V0, Height: 47.5 mm NS 35/7,5, 55 mm NS 35/15, 83.5 mm Width, 6.2 mm Depth
