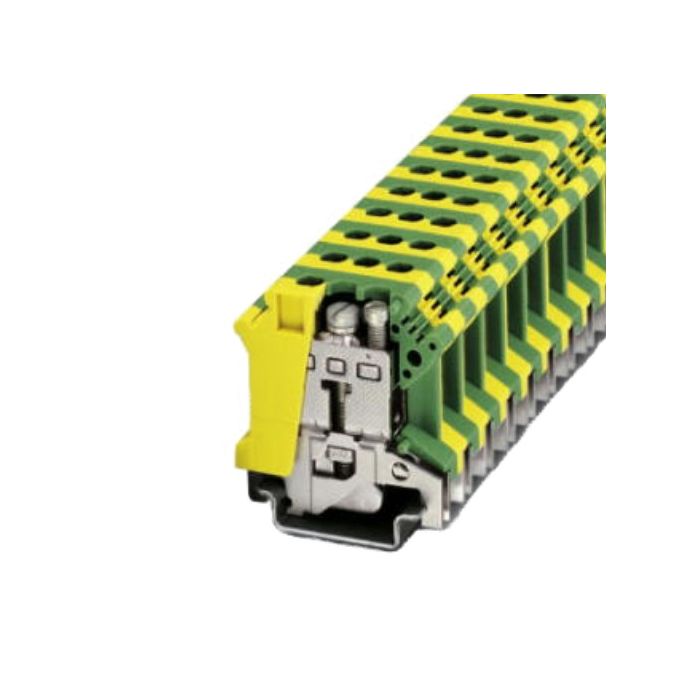

Phoenix Contact Rail Earth Terminal Block Screwed 2 Wire 1 Level 2.5-25mm Green/Yellow Polyamide
Phoenix Contact Rail Earth Terminal Block Screwed 2 Wire 1 Level 2.5-25mm Green/Yellow Polyamide
In stock
SKU
PHO0443052
Rail Earth Terminal Block, Rated Surge Voltage: 6 kV, 2.5-25mm Conductor, 2 Conductors, Wire Strip Length: 11 mm, Tightening Torque: 1.5 to 1.8 N/m, Wiring Format: 2 Conductor Through, 2 Connection Points, 1 Level, Screw Terminal, Insulation Material: Polyamide, Green/Yellow, -60 to 105 deg C, Flammability: V0, Height: 47 mm NS 35/7,5, 54.5 mm NS 35/15, 52 mm NS 32, 42.5 mm Width, 12 mm Depth
| Features |
|
|---|---|
| Brand | Phoenix Contact |
| Standard Pack Size | 50 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 0443052 |
| Colour | Green/Yellow |
| Conductor Size | 2.5-25mm |
| Depth | 12 mm |
| Flammability | V0 |
| Insulation Material | Polyamide |
| Height | 47 mm NS 35/75; 54.5 mm NS 35/15; 52 mm NS 32 |
| Mounting Method | NS 32 - NS 35/75 - NS 35/15 |
| Number of Conductors | 2 |
| Number of Connection Points | 2 |
| Number of Levels | 1 |
| Rated Surge Voltage | 6 kV |
| Product Type | Rail Earth Terminal Blocks |
| Terminal Type | Screw |
| Tightening Torque | 1.5-1.8 Nm |
| Width | 42.5 mm |
| Wire Strip Length | 11 mm |
| Wiring Format | 2 Conductor Through |
Description
Rail Earth Terminal Block, Rated Surge Voltage: 6 kV, 2.5-25mm Conductor, 2 Conductors, Wire Strip Length: 11 mm, Tightening Torque: 1.5 to 1.8 N/m, Wiring Format: 2 Conductor Through, 2 Connection Points, 1 Level, Screw Terminal, Insulation Material: Polyamide, Green/Yellow, -60 to 105 deg C, Flammability: V0, Height: 47 mm NS 35/7,5, 54.5 mm NS 35/15, 52 mm NS 32, 42.5 mm Width, 12 mm Depth
