PGK DC Isolator Surface Mounting Weatherproof 4P 32A 1000VDC IP66

PGK DC Isolator Surface Mounting Weatherproof 4P 32A 1000VDC IP66

In stock
SKU
PGKSE030A
Add to Compare

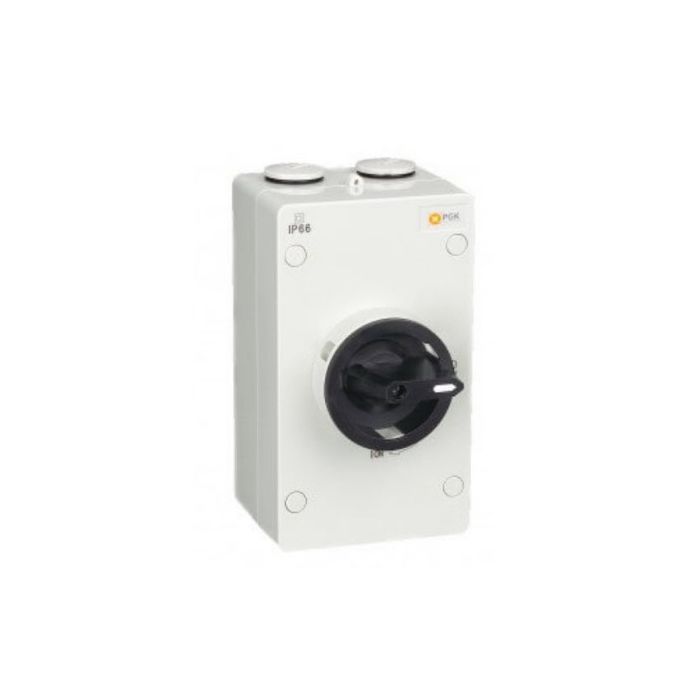

main product photo
Isolator Switch Weatherproof, 1000 Volt DC, 32 Amp, 4 Pole, Screw Connection, Surface Mounting, IP66, 4-16 mm Terminal Capacity, -50 to 85 deg C, 187.6 mm Height, 98.6 mm Width, 108.6 mm Depth, Solar Isolator
More Information
More Information
Features
  • Third party independent testing of all shipments
  • Each batch is marked with a batch number for traceability
  • Multidirectional dial seal
  • Pressure resistant O-rings on gland caps
  • Laser Etched identification marks (batch, and manufacturer)
  • Extra screw caps for service and inspection
  • Precision high tensile spring for faster switching reaction time
  • Precision polycarbonate and UV stabilisation mixing
  • Screw glands (no knockouts)
  • External mounting brackets included no need to compromise the IP67 enclosure
Brand PGK
Standard Pack Size 1
UNSPSC Class 39122200
UOM EA
Vendor Product SE030A
Connection Type Screw
Current 32 Amp
Depth 108.6 mm
Height 187.6 mm
IP Rating IP66
Mounting Method Surface
Number Of Poles 4 Pole
Please Note Solar Isolator
Product Type Isolating Switches
Terminal Capacity 4-16 mm
Temperature -50 to 85 deg C
Voltage 1000 Volt DC
Width 98.6 mm

Description

Isolator Switch Weatherproof, 1000 Volt DC, 32 Amp, 4 Pole, Screw Connection, Surface Mounting, IP66, 4-16 mm Terminal Capacity, -50 to 85 deg C, 187.6 mm Height, 98.6 mm Width, 108.6 mm Depth, Solar Isolator
