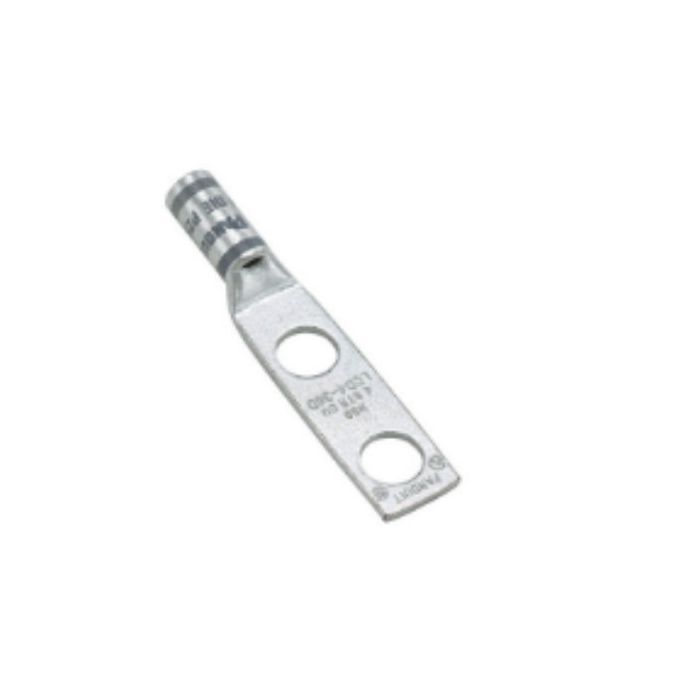

Panduit Crimp Lug Standard Non-Insulated with Two Hole Inspection Window Copper 6 AWG Wire 10in Stud 2.15 in
Panduit Crimp Lug Standard Non-Insulated with Two Hole Inspection Window Copper 6 AWG Wire 10in Stud 2.15 in
In stock
SKU
PANLCD6-10A-L
Crimp Lug, Standard, Non-Insulated, with Two Hole Inspection Window Copper, 6 AWG Wire, 10in Stud, Stud Hole Spacing: 0.63 in, Standard Barrel, Barrel Length: 0.81 in, 2.15 in Overall Length, 2 Holes, Wire Strip Length: 7/8 in, Copper Body, Copper Conductor, Tin Electroplated Finish, 90 deg C, Inside Diameter: 0.22 in, 0.31 in Outside Diameter, 0.46 in Lug Width, 0.08 in Lug Thickness, Crimping Die: P24, with Inspection Window
| Features |
|
|---|---|
| Brand | Panduit |
| Standard Pack Size | 50 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | LCD6-10A-L |
| Barrel Length | 0.81 in |
| Barrel Type | Standard |
| Body Material | Copper |
| Conductive Material | Copper |
| Conductor Size | 6 AWG Wire |
| Crimping Die | P24 |
| Finish | Tin Electroplated |
| Inside Diameter | 0.22 inch |
| Lug Thickness | 0.08 inch |
| Lug Width | 0.46 inch |
| Number of Holes | 2 Holes |
| Outside Diameter | 0.31 inch |
| Overall Length | 2.15 in |
| Please Note | with Inspection Window |
| Stud Size | 10 inch Stud |
| Product Type | Lugs Standard |
| Temperature | 90 deg C |
Description
Crimp Lug, Standard, Non-Insulated, with Two Hole Inspection Window Copper, 6 AWG Wire, 10in Stud, Stud Hole Spacing: 0.63 in, Standard Barrel, Barrel Length: 0.81 in, 2.15 in Overall Length, 2 Holes, Wire Strip Length: 7/8 in, Copper Body, Copper Conductor, Tin Electroplated Finish, 90 deg C, Inside Diameter: 0.22 in, 0.31 in Outside Diameter, 0.46 in Lug Width, 0.08 in Lug Thickness, Crimping Die: P24, with Inspection Window
