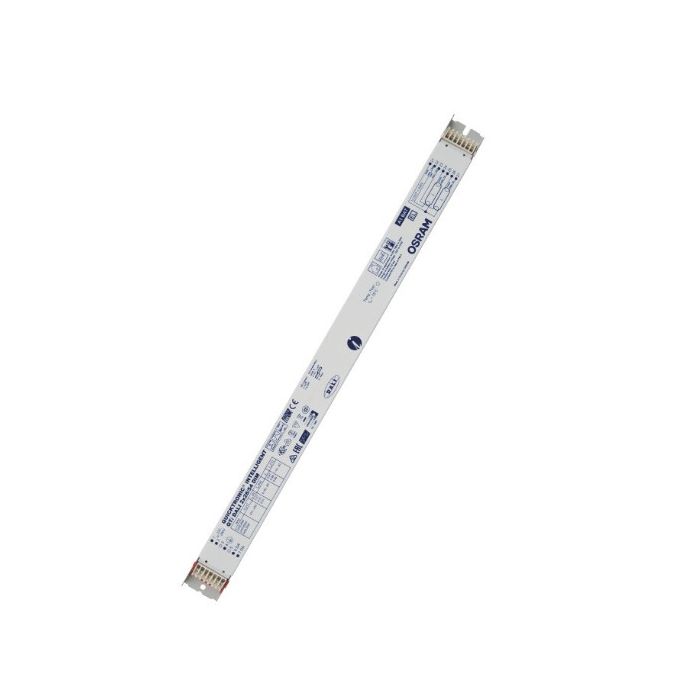

Osram Fluorescent Ballast Dimmable 220/240V IP20 423mm F/2x28-54W Fluorescent Lamps Class I Fixtures

Osram Fluorescent Ballast Dimmable 220/240V IP20 423mm F/2x28-54W Fluorescent Lamps Class I Fixtures

In stock
SKU
OSRQTIDALI2X28/54
Fluorescent Ballast Dimmable, Fluorescent, 220/240 Volt, 50/60 Hz, Dimmable. IP20, For Use With: 2 x 28-54 Watt Fluorescent Lamps, Class I Fixtures, 10 to 50 deg C, 21 mm Height, 30 mm Width, 423 mm Length
More Information
Features
  • Control via the DALI interface
  • Compliance with the DALI Version-1 and IEC 60929
  • Control input protected against overvoltage and polarity reversal (OSRAM ECG)
  • Manual dimming without controller and with standard switches
  • Including memory function (double click) and soft start
  • Suitable for use in emergency lighting systems as per EN 50172/DIN VDE 0108-100
  • Installation in emergency lighting systems according to IEC 61347-2-3, appendix J
  • Easy integration in luminaire thanks to same dimensions like DALI GI ECG
  • TouchDIM function for easy and inexpensive dimming of several ECGs
  • Same luminous flux with direct and alternating current
Brand Osram
Range Name Quicktronic Intelligent Dali
Standard Pack Size 1
UNSPSC Class 39101900
UOM EA
Vendor Product 4050300870502
Dimmable Dimmable
Frequency 50/60 Hz
For Use With 2 x 28-54 Watt Fluorescent Lamps/Class I Fixtures
Height 21mm
IP Rating IP20
Lamp Type Fluorescent
Length 423mm
Product Type Ballast Fluorescent
Temperature 10 to 50 deg C
Voltage 220-240 Volt
Width 30mm

Description

Fluorescent Ballast Dimmable, Fluorescent, 220/240 Volt, 50/60 Hz, Dimmable. IP20, For Use With: 2 x 28-54 Watt Fluorescent Lamps, Class I Fixtures, 10 to 50 deg C, 21 mm Height, 30 mm Width, 423 mm Length
