Osram Vialox NAV-E Super 4Y Sodium Vapour Lamp High Pressure Elliptical 100W E40 GES 2000K 36000 hrs Coated

Osram Vialox NAV-E Super 4Y Sodium Vapour Lamp High Pressure Elliptical 100W E40 GES 2000K 36000 hrs Coated

In stock
SKU
OSRNAV-E100S
Add to Compare

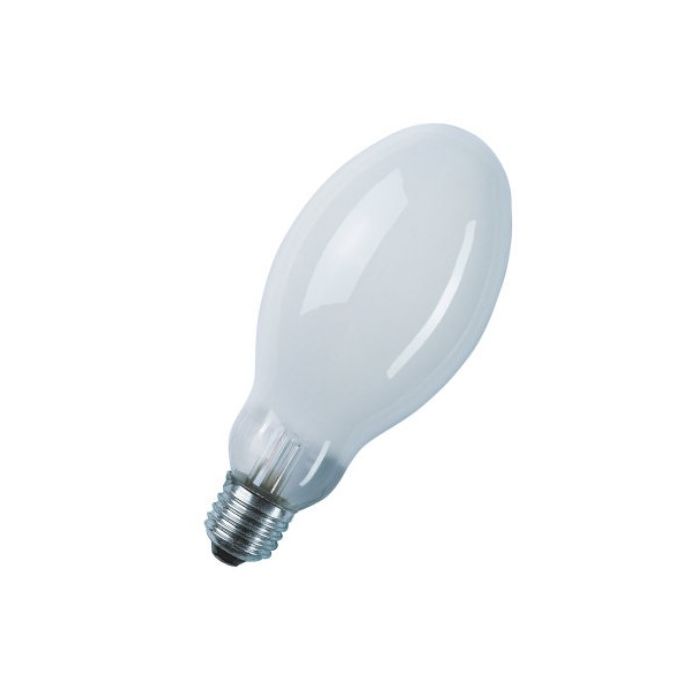

main product photo
Sodium Vapour Lamp, High Pressure, 100 Watt, 100 Volt, Elliptical Shape, E40 (GES) Base, 2000K, 10400 Lumens, 36000/20000/16000 hrs Average Life, <=25 CRI, Dimmable, Coated Finish, 76 mm Diameter, 183 mm Length
More Information
More Information
Features
  • Lamp survival factor: 95% after 16,000 hrs burning time
  • Lamp maintenance factor: >=80 % after 16,000 hrs burning time (according to DIN 13201)
  • ErP compliant according to EU Regulation 245/2009
  • Service lifetime: 4 years (at approx. 11 h/day)
  • Dimmable on conventional control gears and electronic control gears
  • Long lifetime
  • Very high luminous efficacy
  • Very good luminous flux maintenance throughout the life of the lamp
  • Energy savings of up to 50% when replacing mercury vapour lamps (HQL)
  • Optimum energy efficiency on POWERTRONIC PTo 3DIM ECGs
Brand Osram
Range Name Vialox NAV-E Super 4Y
Standard Pack Size 12
UNSPSC Class 39101600
UOM EA
Vendor Product 4050300015774
Average Lamp Life 36000/20000/16000 hrs
Base Type E40 (GES)
Colour Temperature 2000K
CRI <=25
Diameter 76mm
Dimmable Dimmable
Lamp Finish Coated
Lamp Shape Elliptical
Length 183mm
Lumens 10400 Lumens
Product Type Lamps Sodium Vapour
Voltage 100 Volt
Wattage 100 Watt

Description

Sodium Vapour Lamp, High Pressure, 100 Watt, 100 Volt, Elliptical Shape, E40 (GES) Base, 2000K, 10400 Lumens, 36000/20000/16000 hrs Average Life, <=25 CRI, Dimmable, Coated Finish, 76 mm Diameter, 183 mm Length
