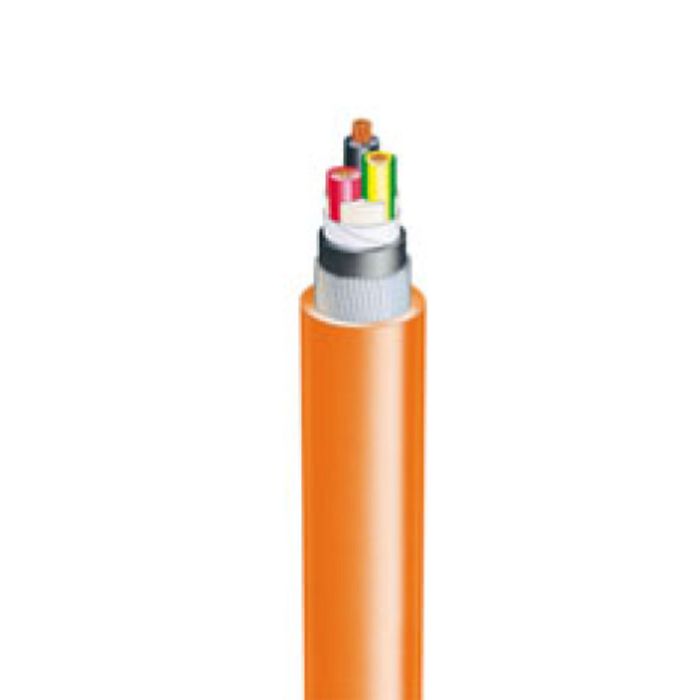

Olex 25 mm Orange Circular Cable Armoured X-90 XLPE/Steel Wire/PVC 1mtr
Olex 25 mm Orange Circular Cable Armoured X-90 XLPE/Steel Wire/PVC 1mtr
In stock
SKU
OLXFTMC17AA003OMAA
Circular Cable, Armoured, 25 mm, Compacted Copper, 0.6-1 kV, 3 Core + Earth, 26.1 mm Overall Diameter, 19.2 mm Bedding Diameter, 22.4 mm Diameter Over Armour, 6 mm Earth Conductor, 1 mtr Length, 340 mm After Installation Bend Radius, 0.9 mm Insulation Thickness, 3.4 kN Pulling Tension, DC: 0.727 Ohm/km AC: 0.927 Ohm/km Conductor Resistance, 490 MOhm/km Insulation Resistance, Steel Wire Armour, Red/Black/Green/Yellow Core, X-90 XLPE Insulation, PVC Sheath, Orange Sheath, 90 deg C, AS/NZS 1125 AS/NZS 5000.1
| Brand | Olex |
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | FTMC17AA003OMAA |
| Armour Material | Steel Wire |
| Bedding Diameter | 19.2 mm |
| Bend Radius | 340 mm After Installation |
| Conductor Resistance | DC: 0.727 Ohm/km AC: 0.927 Ohm/km |
| Conductor Type | Compacted Copper |
| Conductor Size | 25 mm |
| Core Colours | Black/Red/Green/Yellow |
| Diameter Over Armour | 22.4 mm |
| Earth Conductor Size | 6 mm |
| Insulation Material | X-90 XLPE |
| Insulation Thickness | 0.9 mm |
| Insulation Resistance | 490 MOhm/km |
| Length | 1 mtr |
| Number of Cores | 3 Core + Earth |
| Overall Diameter | 26.1 mm |
| Product Type | Circular Cable Armoured |
| Pulling Tension | 3.4 kN |
| Sheath Colour | Orange |
| Sheath Material | PVC |
| Standards | AS/NZS 1125 AS/NZS 5000.1 |
| Temperature | 90 deg C |
| Voltage | 0.6-1 kV |
Description
Circular Cable, Armoured, 25 mm, Compacted Copper, 0.6-1 kV, 3 Core + Earth, 26.1 mm Overall Diameter, 19.2 mm Bedding Diameter, 22.4 mm Diameter Over Armour, 6 mm Earth Conductor, 1 mtr Length, 340 mm After Installation Bend Radius, 0.9 mm Insulation Thickness, 3.4 kN Pulling Tension, DC: 0.727 Ohm/km AC: 0.927 Ohm/km Conductor Resistance, 490 MOhm/km Insulation Resistance, Steel Wire Armour, Red/Black/Green/Yellow Core, X-90 XLPE Insulation, PVC Sheath, Orange Sheath, 90 deg C, AS/NZS 1125 AS/NZS 5000.1
