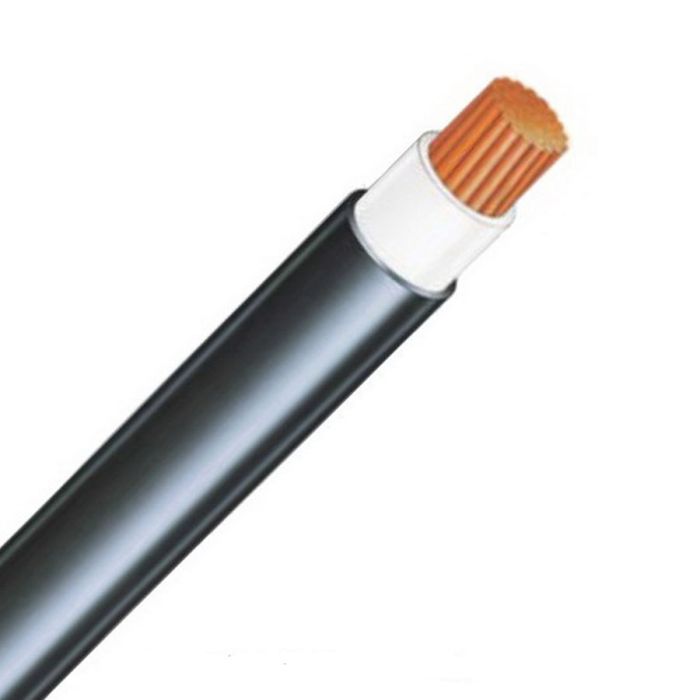

Olex 300mm SDI Cable Welding 1mtr
Olex 300mm SDI Cable Welding 1mtr
In stock
SKU
OLXBZHE91AA001CXNA
SDI Cable Welding, 300 mm, Stranded Copper, 0.6-1 kV, 1 Core, 30.8 mm Overall Diameter, 1 mtr Length, 280 mm Bend Radius, 1.8 mm Insulation Thickness, 1.8 mm Sheath Thickness, DC: 0.0641 Ohm/km AC: 0.09 Ohm/km Conductor Resistance, 190 MOhm/km Insulation Resistance, X-HF-110 Insulation, HFS-110-TP Sheath, Black Sheath, 110 deg C, AS/NZS 5000.1
| Brand | Olex |
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | BZHE91AA001CXNA |
| Bend Radius | 280 mm |
| Conductor Resistance | DC: 0.0641 Ohm/km AC: 0.09 Ohm/km |
| Conductor Size | 300 mm |
| Conductor Type | Stranded Copper |
| Insulation Material | X-HF-110 |
| Insulation Resistance | 190 MOhm/km |
| Insulation Thickness | 1.8 mm |
| Length | 1 mtr |
| Number of Cores | 1 Core |
| Overall Diameter | 30.8 mm |
| Product Type | SDI Cable Welding |
| Sheath Colour | Black |
| Sheath Material | HFS-110-TP |
| Sheath Thickness | 1.8 mm |
| Standards | AS/NZS 5000.1 |
| Temperature | 110 deg C |
| Voltage | 0.6-1 kV |
Description
SDI Cable Welding, 300 mm, Stranded Copper, 0.6-1 kV, 1 Core, 30.8 mm Overall Diameter, 1 mtr Length, 280 mm Bend Radius, 1.8 mm Insulation Thickness, 1.8 mm Sheath Thickness, DC: 0.0641 Ohm/km AC: 0.09 Ohm/km Conductor Resistance, 190 MOhm/km Insulation Resistance, X-HF-110 Insulation, HFS-110-TP Sheath, Black Sheath, 110 deg C, AS/NZS 5000.1
