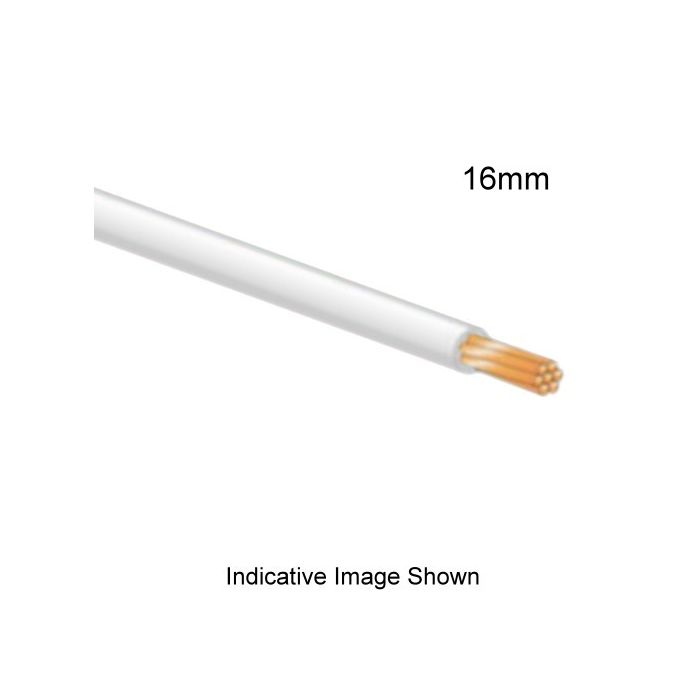

Building Wire 1 Core 16mm V-90 PVC White 0.6/1kV

Olex 16mm Building Wire White 1mtr

In stock
SKU
OLX7/170BWWA1

Building Wire, Single Insulated, 1 Core, 16 mm, Stranded Copper, 0.6/1 kV, 7/1.7 mm Strands, 6.9 mm Overall Diameter, 1 mm Insulation Thickness, Conductor Resistance: DC - 1.15 Ohm/km AC - 1.4 Ohm/km, Insulation Resistance: 6 MOhm/km, V-90 PVC Insulation, Unsheathed, White Insulation, 90 deg C, AS/NZS 1125, AS/NZS 5000.1
More Information
Brand Olex
Standard Pack Size 1
UNSPSC Class 26121500
UOM MTR
Vendor Product BAAP15A1001AAWT
Conductor Type Stranded Copper
Conductor Resistance DC: 1.15 Ohm/km AC: 1.4 Ohm/km
Insulation Colour White
Insulation Resistance 6 MOhm/km
Insulation Thickness 1 mm
Insulation Material V-90 PVC
Overall Diameter 6.9 mm
Product Type Building Wire
Stranding 7/1.7 mm
Standards AS/NZS 1125 AS/NZS 5000.1
Temperature 90 deg C
Voltage 0.6-1 kV
Conductor Size 16 mm

Description

Building Wire, Single Insulated, 1 Core, 16 mm, Stranded Copper, 0.6/1 kV, 7/1.7 mm Strands, 6.9 mm Overall Diameter, 1 mm Insulation Thickness, Conductor Resistance: DC - 1.15 Ohm/km AC - 1.4 Ohm/km, Insulation Resistance: 6 MOhm/km, V-90 PVC Insulation, Unsheathed, White Insulation, 90 deg C, AS/NZS 1125, AS/NZS 5000.1
