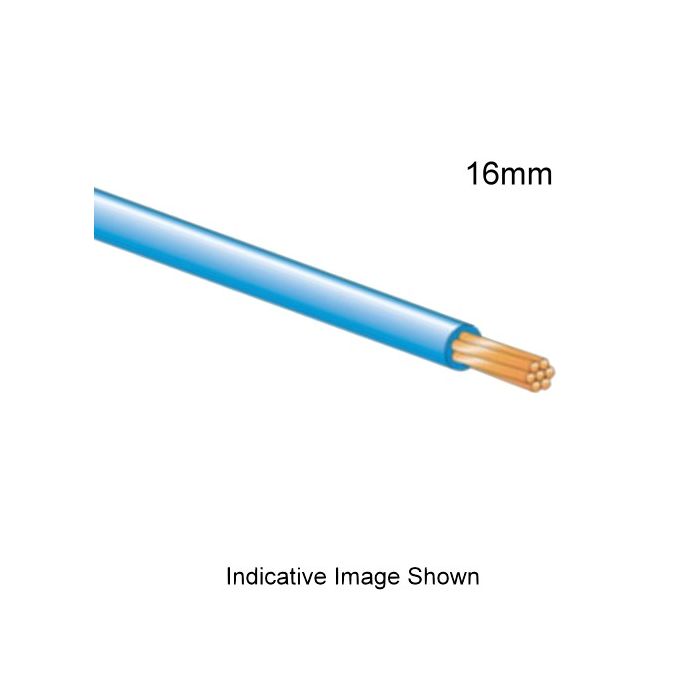

Building Wire 1 Core 16mm V-90 PVC Blue 0.6/1kV
Olex 16mm Building Wire Blue 1mtr
In stock
SKU
OLX7/170BWBLA1
Building Wire, Single Insulated, 1 Core, 16 mm, Stranded Copper, 0.6/1 kV, 7/1.7 mm Strands, 6.9 mm Overall Diameter, 1 mm Insulation Thickness, Conductor Resistance: DC - 1.15 Ohm/km AC - 1.4 Ohm/km, Insulation Resistance: 6 MOhm/km, V-90 PVC Insulation, Unsheathed, Blue Insulation, 90 deg C, AS/NZS 1125, AS/NZS 5000.1
| Brand | Olex |
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 26121500 |
| UOM | MTR |
| Vendor Product | BAAP15A1001AABE |
| Conductor Type | Stranded Copper |
| Conductor Resistance | DC: 1.15 Ohm/km AC: 1.4 Ohm/km |
| Insulation Colour | Blue |
| Insulation Resistance | 6 MOhm/km |
| Insulation Thickness | 1 mm |
| Insulation Material | V-90 PVC |
| Overall Diameter | 6.9 mm |
| Product Type | Building Wire |
| Stranding | 7/1.7 mm |
| Standards | AS/NZS 1125 AS/NZS 5000.1 |
| Temperature | 90 deg C |
| Voltage | 0.6-1 kV |
| Conductor Size | 16 mm |
Description
Building Wire, Single Insulated, 1 Core, 16 mm, Stranded Copper, 0.6/1 kV, 7/1.7 mm Strands, 6.9 mm Overall Diameter, 1 mm Insulation Thickness, Conductor Resistance: DC - 1.15 Ohm/km AC - 1.4 Ohm/km, Insulation Resistance: 6 MOhm/km, V-90 PVC Insulation, Unsheathed, Blue Insulation, 90 deg C, AS/NZS 1125, AS/NZS 5000.1
