Olex 16mm SDI Cable Black 100mtr
Olex 16mm SDI Cable Black 100mtr
In stock
SKU
OLX7/170-1BKA1

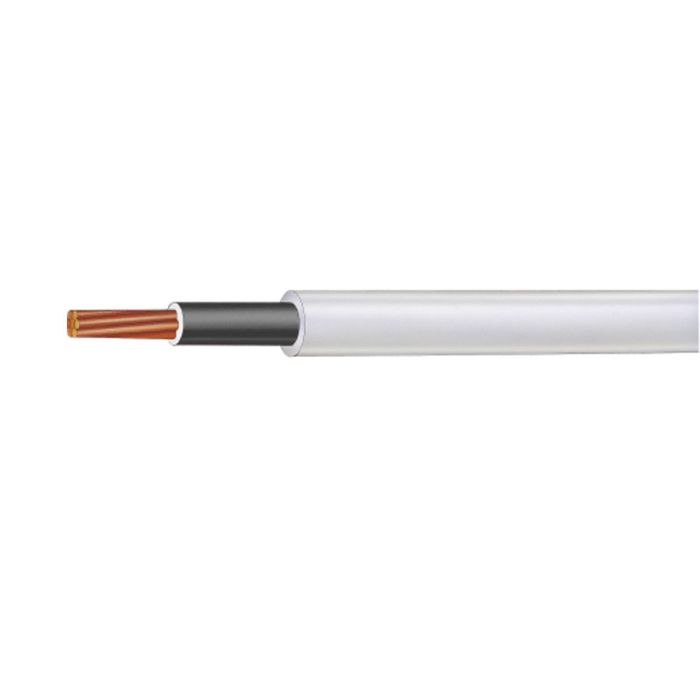

Single Core Double Insulated Cable, 16 mm, Stranded Copper, 450/750 Volt, 7/1.7 mm Strands, 8.9 mm Overall Diameter, 1 mm Insulation Thickness, 1 mm Sheath Thickness, Conductor Resistance: DC: 1.15 Ohm/km, AC: 1.4 Ohm/km, Insulation Resistance: 6 MOhm/km, V-90 PVC Insulation, PVC Sheath, Black Core, White Sheath, 90 deg C, AS/NZS 1125, AS/NZS 5000.1, AS/NZS 5000.2
| Brand | Olex |
|---|---|
| Standard Pack Size | 100 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | AABP15A1001WVBK |
Description
Single Core Double Insulated Cable, 16 mm, Stranded Copper, 450/750 Volt, 7/1.7 mm Strands, 8.9 mm Overall Diameter, 1 mm Insulation Thickness, 1 mm Sheath Thickness, Conductor Resistance: DC: 1.15 Ohm/km, AC: 1.4 Ohm/km, Insulation Resistance: 6 MOhm/km, V-90 PVC Insulation, PVC Sheath, Black Core, White Sheath, 90 deg C, AS/NZS 1125, AS/NZS 5000.1, AS/NZS 5000.2
