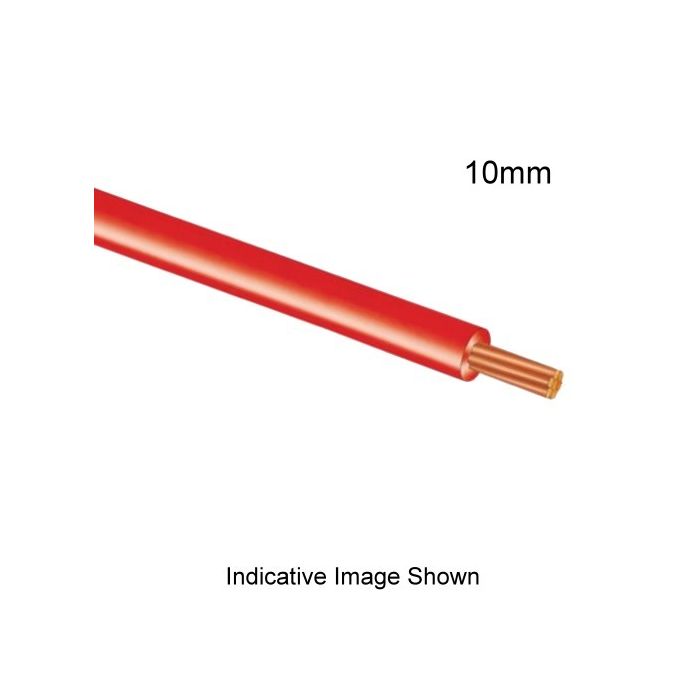

Building Wire 1 Core 10mm V-90 PVC Red 0.6/1kV

In stock
SKU
OLX7/135BWRA1

Building Wire, Single Insulated, 1 Core, 10 sq-mm, Stranded Copper, 0.6/1 kV, 7/1.35 mm Strands, 6 mm Overall Diameter, 1 mm Insulation Thickness, Conductor Resistance: DC - 1.83 Ohm/km AC - 2.23 Ohm/km, Insulation Resistance: 7.2 MOhm/km, V-90 PVC Insulation, Unsheathed, Red Insulation, 90 deg C, AS/NZS 1125, AS/NZS 5000.1
More Information
Brand Olex
Standard Pack Size 1
UNSPSC Class 26121500
UOM MTR
Vendor Product BAAP13A1001AARD
Temperature 90 deg C
Insulation Material V-90 PVC
Insulation Colour Red
Voltage 0.6-1 kV
Conductor Resistance DC: 1.83 Ohm/km AC: 2.23 Ohm/km
Sheath Material Unsheathed
Insulation Resistance 7.2 MOhm/km
Standards AS/NZS 1125 AS/NZS 5000.1
Insulation Thickness 1 mm
Overall Diameter 6 mm
Stranding 7/1.35 mm
Conductor Type Stranded Copper

Description

Building Wire, Single Insulated, 1 Core, 10 sq-mm, Stranded Copper, 0.6/1 kV, 7/1.35 mm Strands, 6 mm Overall Diameter, 1 mm Insulation Thickness, Conductor Resistance: DC - 1.83 Ohm/km AC - 2.23 Ohm/km, Insulation Resistance: 7.2 MOhm/km, V-90 PVC Insulation, Unsheathed, Red Insulation, 90 deg C, AS/NZS 1125, AS/NZS 5000.1
