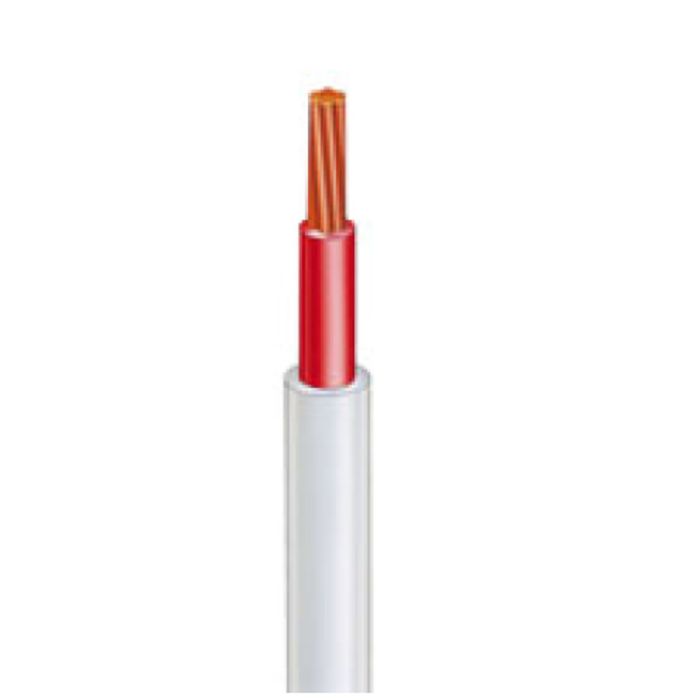

Olex 1.5mm SDI Cable Red 100mtr
Olex 1.5mm SDI Cable Red 100mtr
In stock
SKU
OLX7/050-1RA1
SDI Cable, 1.5 mm, Stranded Copper, 450-750 Volt, 1 Core, 7/0.5 mm Strands, 4.4 mm Overall Diameter, 100 mtr Length, 26 mm Bend Radius, 0.6 mm Insulation Thickness, 0.8 mm Sheath Thickness, DC: 13.6 Ohm/km AC: 16.5 Ohm/km Conductor Resistance, 10 MOhm/km Insulation Resistance, Red Core, V-90 PVC Insulation, PVC Sheath, White Sheath, 90 deg C, AS/NZS 1125 AS/NZS 5000.1 AS/NZS 5000.2
| Brand | Olex |
|---|---|
| Standard Pack Size | 100 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | AABP05A1001WTRD |
| Bend Radius | 26 mm |
| Conductor Resistance | DC: 13.6 Ohm/km AC: 16.5 Ohm/km |
| Conductor Size | 1.5 mm |
| Conductor Type | Stranded Copper |
| Core Colours | Red |
| Insulation Material | V-90 PVC |
| Insulation Resistance | 10 MOhm/km |
| Insulation Thickness | 0.6 mm |
| Length | 100 mtr |
| Number of Cores | 1 Core |
| Overall Diameter | 4.4 mm |
| Product Type | SDI Cable |
| Sheath Material | PVC |
| Standards | AS/NZS 1125 AS/NZS 5000.1 AS/NZS 5000.2 |
| Sheath Thickness | 0.8 mm |
| Sheath Colour | White |
| Stranding | 7/0.5 mm |
| Voltage | 450-750 Volt |
| Temperature | 90 deg C |
Description
SDI Cable, 1.5 mm, Stranded Copper, 450-750 Volt, 1 Core, 7/0.5 mm Strands, 4.4 mm Overall Diameter, 100 mtr Length, 26 mm Bend Radius, 0.6 mm Insulation Thickness, 0.8 mm Sheath Thickness, DC: 13.6 Ohm/km AC: 16.5 Ohm/km Conductor Resistance, 10 MOhm/km Insulation Resistance, Red Core, V-90 PVC Insulation, PVC Sheath, White Sheath, 90 deg C, AS/NZS 1125 AS/NZS 5000.1 AS/NZS 5000.2
