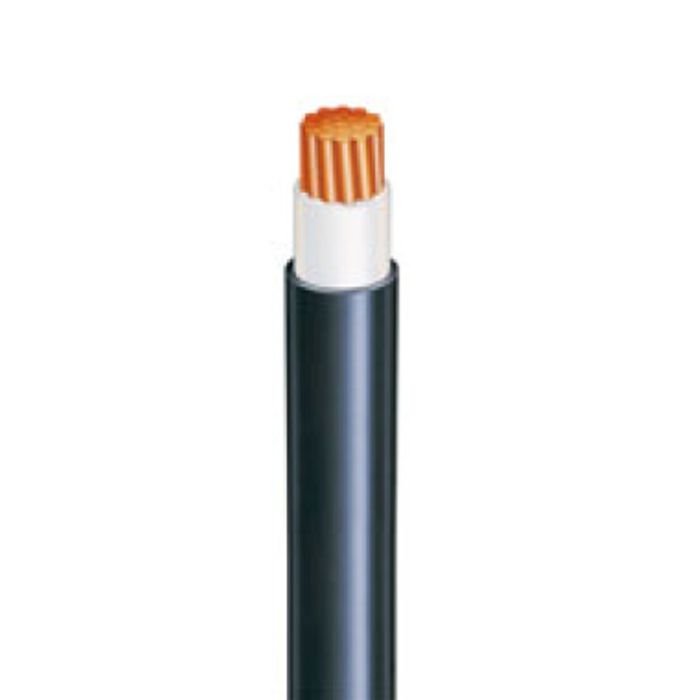

Olex SDI Cable XLPE 1 Core 400mm 0.6/1kV Stranded Copper XLPE/PVC Black
Olex SDI Cable XLPE 1 Core 400mm 0.6/1kV Stranded Copper XLPE/PVC Black
In stock
SKU
OLX61/285XLPEA9
Single Core Double Insulated Cable, XLPE, 1 Core, 400 mm, Stranded Copper, 0.6/1 kV, 61/2.85 mm Strands, 33.3 mm Overall Diameter, 2 mm Insulation Thickness, 1.9 mm Sheath Thickness, Conductor Resistance: DC: 0.047 Ohm/km, AC: 0.062 Ohm/km, Insulation Resistance: 200 MOhm/km, X-90 XLPE Insulation, PVC Sheath, Black Sheath, 90 deg C, AS/NZS 1125, AS/NZS 5000.1
| Brand | Olex |
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | BDBP28AA001CXNA |
| Conductor Resistance | DC: 0.047 Ohm/km AC: 0.062 Ohm/km |
| Conductor Size | 400 mm |
| Conductor Type | Stranded Copper |
| Insulation Material | X-90 XLPE |
| Insulation Resistance | 200 MOhm/km |
| Insulation Thickness | 2 mm |
| Number of Cores | 1 Core |
| Overall Diameter | 33.3 mm |
| Product Type | Circular XLPE SDI |
| Sheath Colour | Black |
| Sheath Material | PVC |
| Sheath Thickness | 1.9 mm |
| Standards | AS/NZS 1125 AS/NZS 5000.1 |
| Temperature | 90 deg C |
| Stranding | 61/2.85 mm |
| Voltage | 0.6-1 kV |
Description
Single Core Double Insulated Cable, XLPE, 1 Core, 400 mm, Stranded Copper, 0.6/1 kV, 61/2.85 mm Strands, 33.3 mm Overall Diameter, 2 mm Insulation Thickness, 1.9 mm Sheath Thickness, Conductor Resistance: DC: 0.047 Ohm/km, AC: 0.062 Ohm/km, Insulation Resistance: 200 MOhm/km, X-90 XLPE Insulation, PVC Sheath, Black Sheath, 90 deg C, AS/NZS 1125, AS/NZS 5000.1
