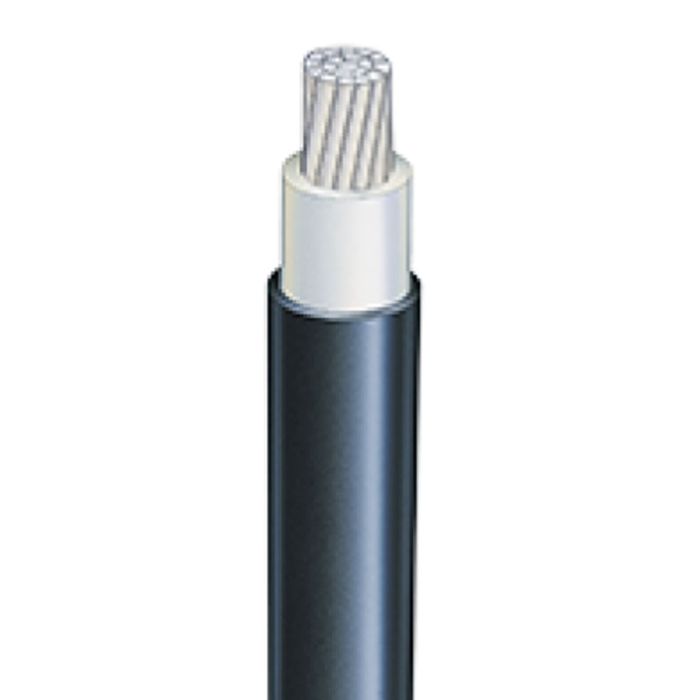

Olex SDI Cable XLPE 1 Core 300mm 0.6/1kV Compacted Aluminium XLPE/PVC Black
Olex SDI Cable XLPE 1 Core 300mm 0.6/1kV Compacted Aluminium XLPE/PVC Black
In stock
SKU
OLX61/252AXLPEA9
Circular XLPE Cable SDI, 300 mm, Compacted Aluminium, 0.6-1 kV, 1 Core, 61/2.52 mm Strands, 27.6 mm Overall Diameter, 330 mm During Installation/220 mm After Installation Bend Radius, 1.8 mm Insulation Thickness, 1.8 mm Sheath Thickness, 3.3 kN Pulling Tension, DC: 0.1 Ohm/km AC: 0.125 Ohm/km Conductor Resistance, 220 MOhm/km Insulation Resistance, X-90 XLPE Insulation, PVC Sheath, Black Sheath, 90 deg C, AS/NZS 1125 AS/NZS 5000.1
| Brand | Olex |
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | BDBA27AA001CXNA |
| Bend Radius | 330 mm During Installation/220 mm After Installation |
| Conductor Size | 300 mm |
| Conductor Resistance | DC: 0.1 Ohm/km AC: 0.125 Ohm/km |
| Conductor Type | Compacted Aluminium |
| Insulation Material | X-90 XLPE |
| Insulation Resistance | 220 MOhm/km |
| Insulation Thickness | 1.8 mm |
| Number of Cores | 1 Core |
| Overall Diameter | 27.6 mm |
| Pulling Tension | 3.3 kN |
| Product Type | Circular XLPE SDI |
| Sheath Material | PVC |
| Sheath Colour | Black |
| Sheath Thickness | 1.8 mm |
| Stranding | 61/2.52 mm |
| Standards | AS/NZS 1125 AS/NZS 5000.1 |
| Voltage | 0.6-1 kV |
| Temperature | 90 deg C |
Description
Circular XLPE Cable SDI, 300 mm, Compacted Aluminium, 0.6-1 kV, 1 Core, 61/2.52 mm Strands, 27.6 mm Overall Diameter, 330 mm During Installation/220 mm After Installation Bend Radius, 1.8 mm Insulation Thickness, 1.8 mm Sheath Thickness, 3.3 kN Pulling Tension, DC: 0.1 Ohm/km AC: 0.125 Ohm/km Conductor Resistance, 220 MOhm/km Insulation Resistance, X-90 XLPE Insulation, PVC Sheath, Black Sheath, 90 deg C, AS/NZS 1125 AS/NZS 5000.1
