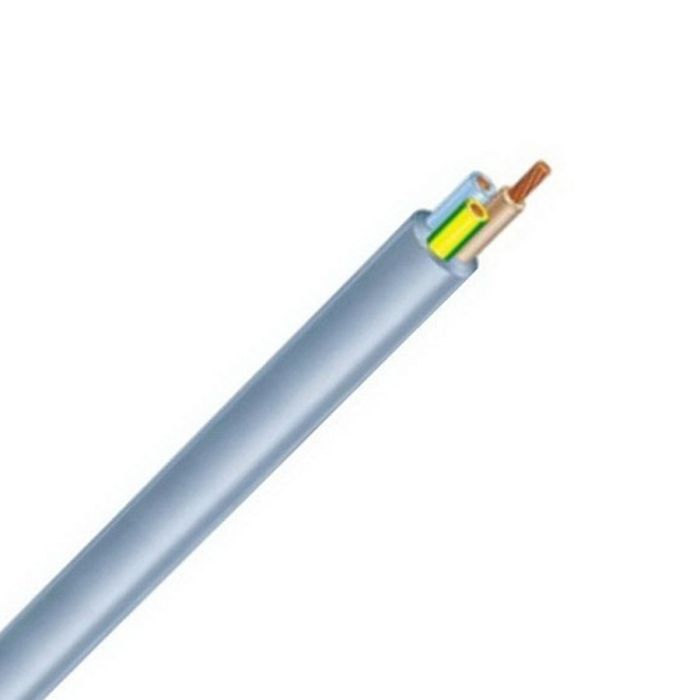

Olex Powerlex Ordinary Duty Flexible Cable 2 Core & Earth 0.75mm 250/440V Copper PVC/PVC Grey
Olex Powerlex Ordinary Duty Flexible Cable 2 Core & Earth 0.75mm 250/440V Copper PVC/PVC Grey
In stock
SKU
OLX24/020-3GYA1
Flexible Cable, Ordinary Duty, 2 Core & Earth, 0.75 mm, Stranded Copper, 250/440 Volt, 0.21 mm Strands, 6.6 mm Overall Diameter, Conductor Resistance: DC - 26 Ohm/km AC - 31.6 Ohm/km, Insulation Resistance: 17 MOhm/km, V-90 PVC Insulation, PVC Sheath, Brown Light Blue Green/yellow Cores, Grey Sheath, AS/NZS 3191, AS/NZS 60227
| Brand | Olex |
|---|---|
| Range Name | Powerlex |
| Standard Pack Size | 1 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | EAHR02A1003GYAA |
| Conductor Resistance | 26 Ohm/km - AC: 31.6 Ohm/km |
| Conductor Size | 0.75 mm |
| Conductor Type | Stranded Copper |
| Core Colours | Brown/Blue/Green/Yellow |
| Insulation Material | V-90 PVC |
| Insulation Resistance | 17 MOhm/km |
| Number of Cores | 2 Core + Earth |
| Overall Diameter | 6.6 mm |
| Product Type | Flexible Cable |
| Sheath Colour | Grey |
| Sheath Material | PVC |
| Standards | AS/NZS 3191 AS/NZS 60227 |
| Stranding | 0.21 mm |
| Voltage | 250-440 Volt |
Description
Flexible Cable, Ordinary Duty, 2 Core & Earth, 0.75 mm, Stranded Copper, 250/440 Volt, 0.21 mm Strands, 6.6 mm Overall Diameter, Conductor Resistance: DC - 26 Ohm/km AC - 31.6 Ohm/km, Insulation Resistance: 17 MOhm/km, V-90 PVC Insulation, PVC Sheath, Brown Light Blue Green/yellow Cores, Grey Sheath, AS/NZS 3191, AS/NZS 60227
